3DGence INDUSTRY F340

The most versatile industrial 3D printer capable of 3D printing with the widest range of engineering materials, certified by TÜV Rheinland. Designed to produce high-quality and durable parts with complex geometry.

CONTACT US

Features

The industrial customers always expect the best. As the manufacturer 3DGence aims to provide the highest products quality, productivity improvement and the safety work environment. Reliability is a key: the models should be printed correctly every time. There are several features that characterize the real industrial 3D printer, e.g. it has to provide repeatability of the prints, consistent conditions during storage and printing process, ensure high dimensional accuracy or allow to print very complex geometries with either break-away or soluble support materials. Learn more about the features and unique qualities that position 3DGence INDUSTRY F340 among the most reliable and veratile industrial 3D printers in the world.

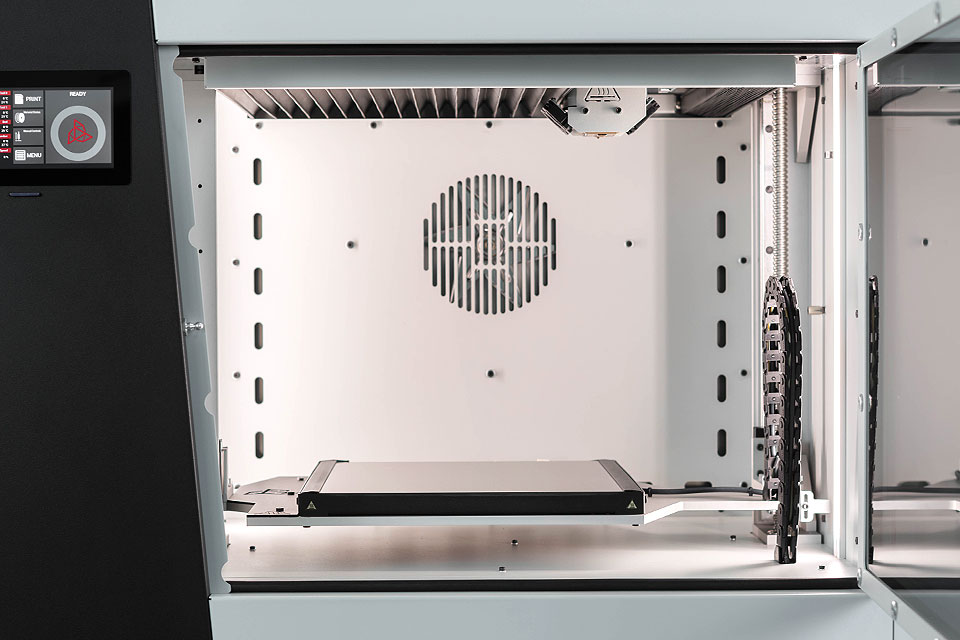

Large build volume

3Best in class price to build volume ratio.

With the dimensions of 260 x 300 x 340 mm you can 3D print large models in one run. The total build volume of 26 520 cm^3 combined with very attractive end user price results in best-in-class price to volume ratio within the industrial grade 3D printers.

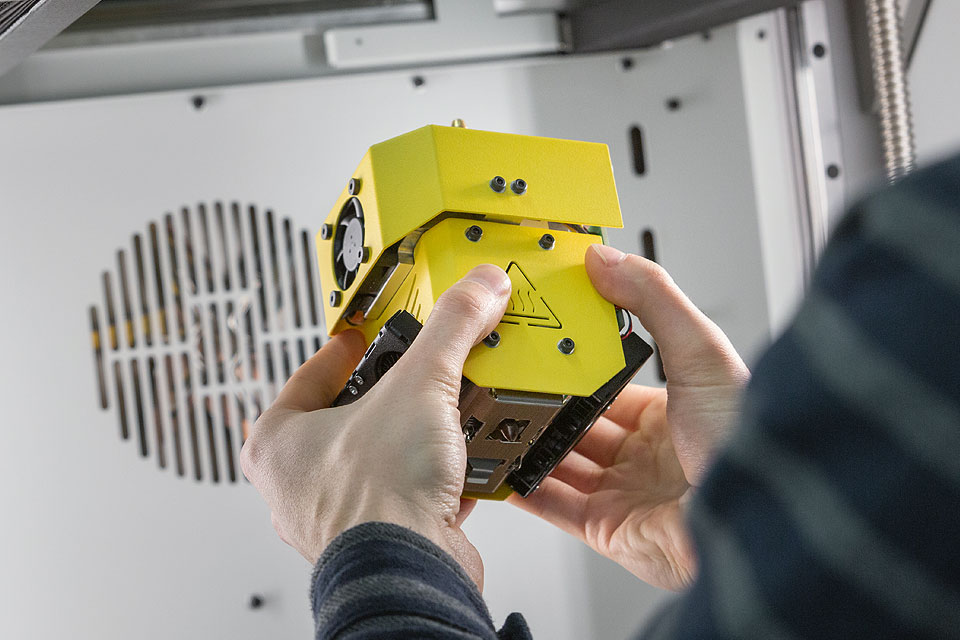

Interchangeable printing modules

Wide range of engineering materials that can be processed at very high temperatures up to 500°C.

3D print from multiple filaments, from PLA to PEEK on a single machine, all you need to do is replace the printing module.

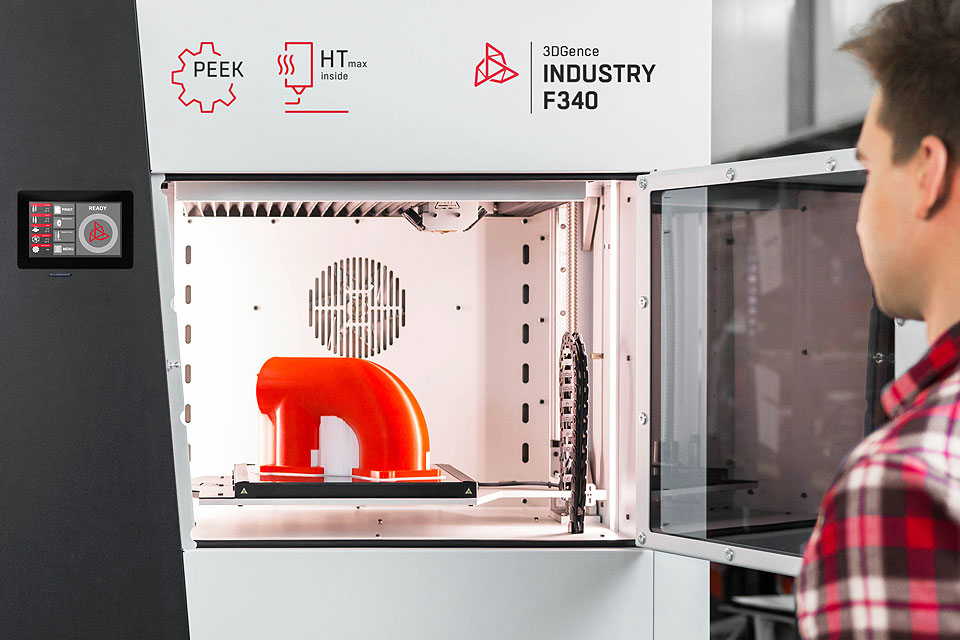

Heated printing chamber

Dimensional accuracy of the models and their high quality.

The actively heated chamber can reach temperature up to 85°C and it makes 3D printing with ABS, PEEK, PEKK and other engineering polymers an easy task.

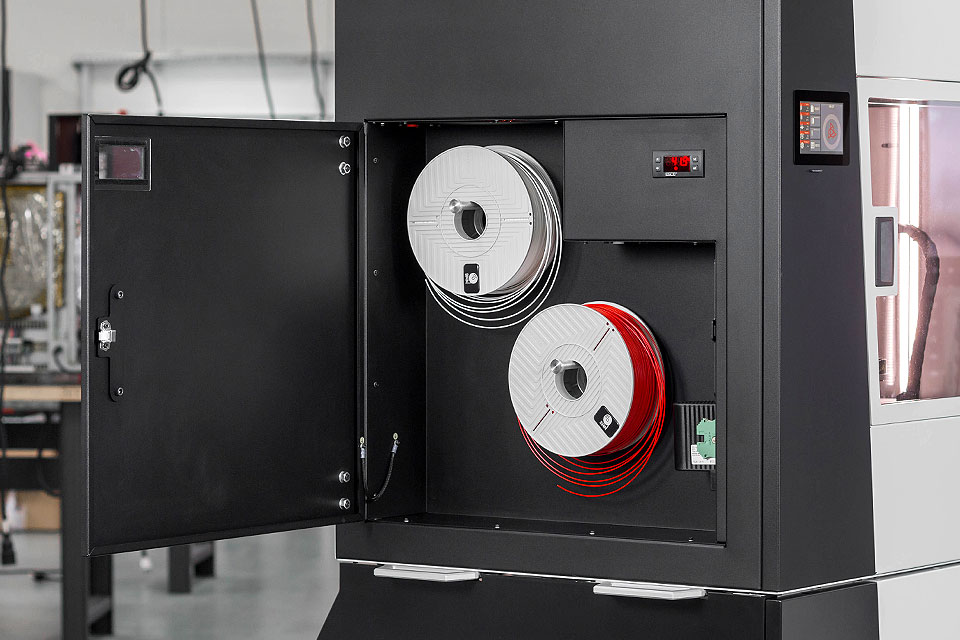

Heated material chamber

Controlled humidity for loaded materials.

Most of the high-performance polymers have to be dried before use. 3DGence INDUSTRY F340 will help keep filaments dry. The materials are always pre-warmed and dry.

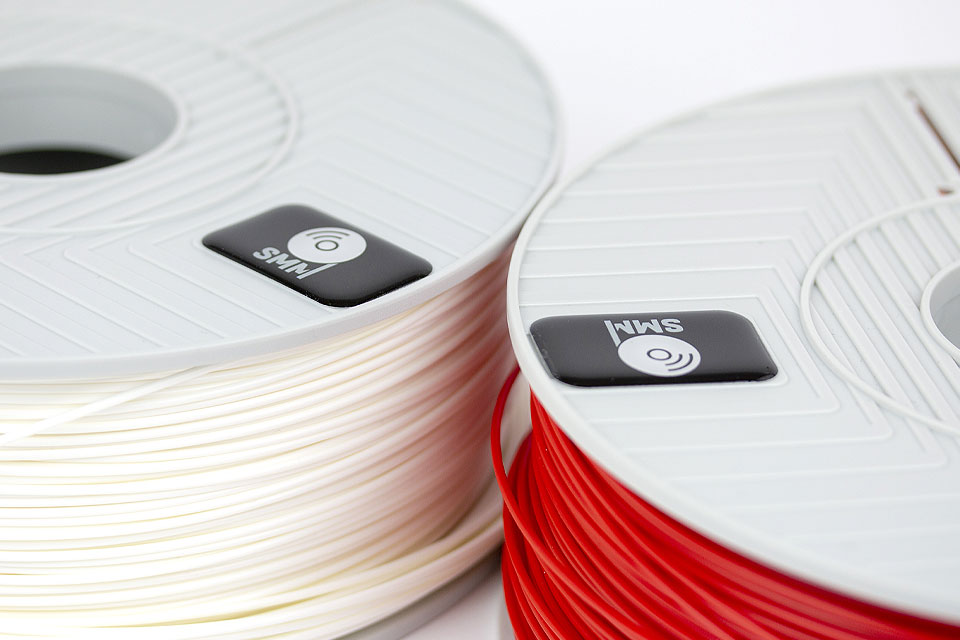

Smart Material Manager

Guarantee of optimal working conditions.

The NFC scanner collects data connected with the filament used during the printing process – optimal working conditions and maximum speed. All the information concerning the weight, type, colour and percentage quantity of remaining filament loaded on a particular hotend.

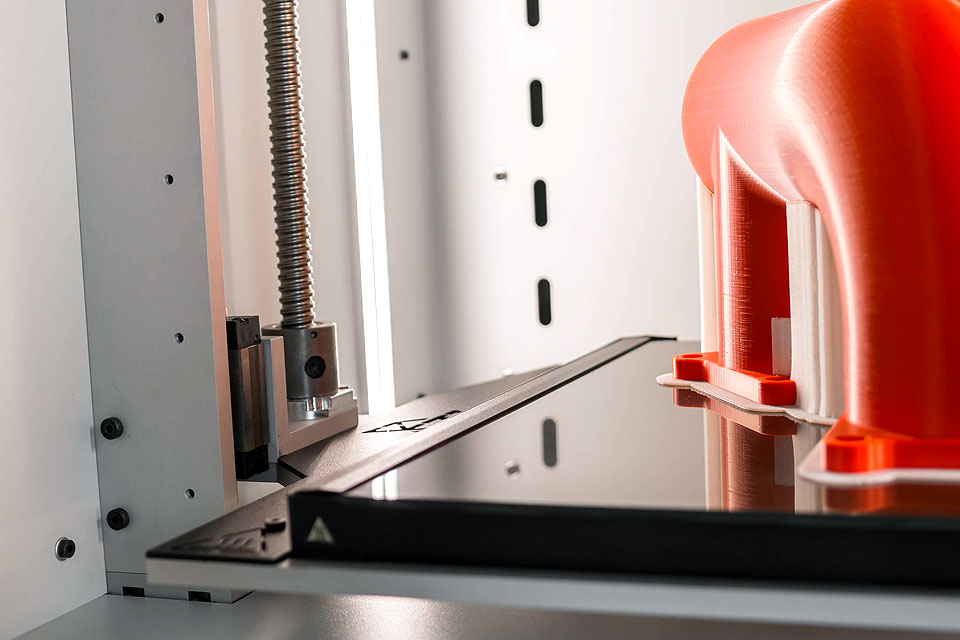

Autocalibration

Low maintenance solution.

Tensometric system used in 3DGence INDUSTRY F340 allows to automatically calibrate this 3D printer.

Filaments

peek

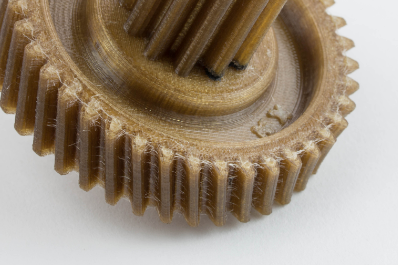

PEEK

High-performance polymer from PAEK family which offers a unique combination of properties.

Find out more
ultem

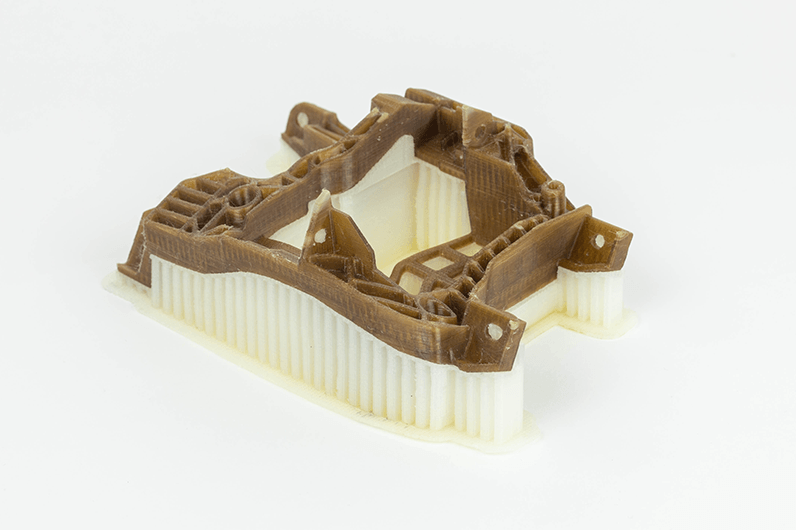

ESM-10

Soluble support material. Clear the supports without the risk of damaging the model.

Find out more
PEKK

PEKK

High-performance polymer from PAEK family which offers a unique combination of properties.

Find out more
asa

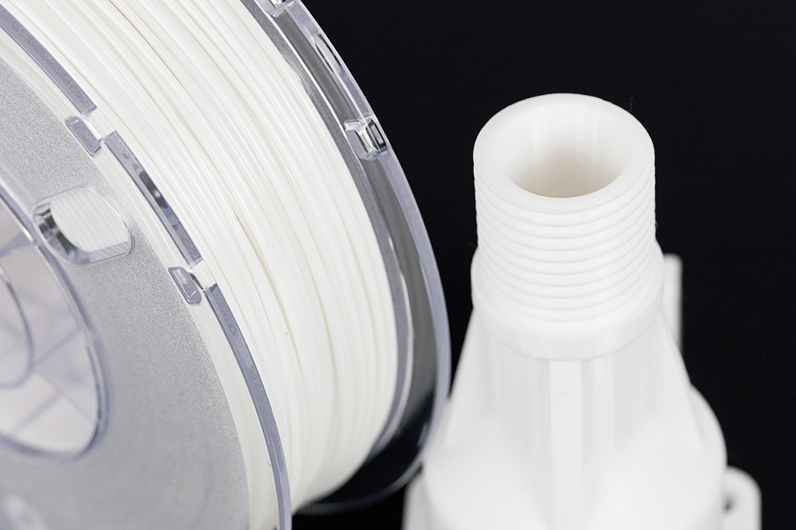

PC

One of the most durable, hardest and heat resistant engineering grade polymer.

Find out more
pc

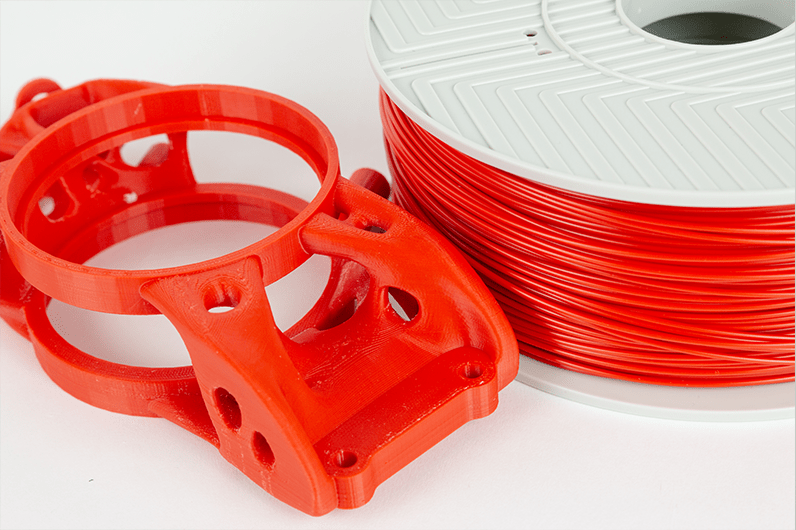

PC-ABS

Combines the features of acrylonitrile butadiene styrene and polycarbonate copolymer.

Find out more
hips

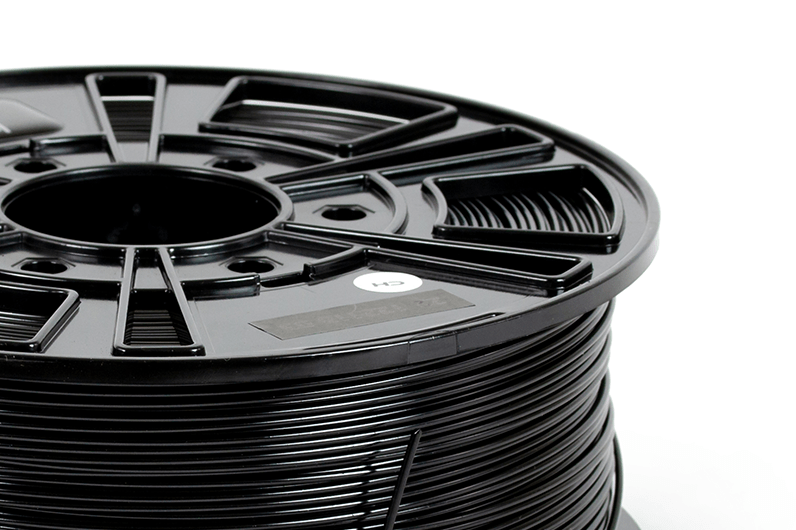

PC-ESD

Produced using multi-wall carbon nanotube technology and a highly precise extrusion process.

Find out more
asa

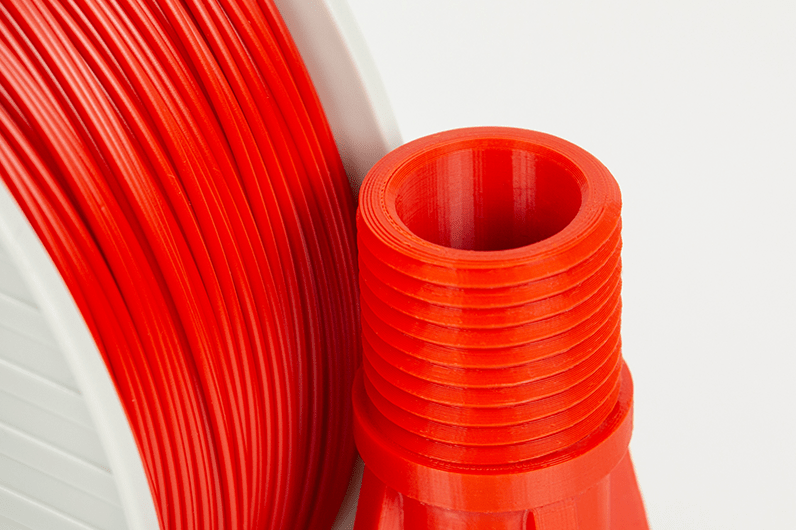

ABS

ABS is one of the most popular thermoplastics, regardless of production technology.

Find out more
pc

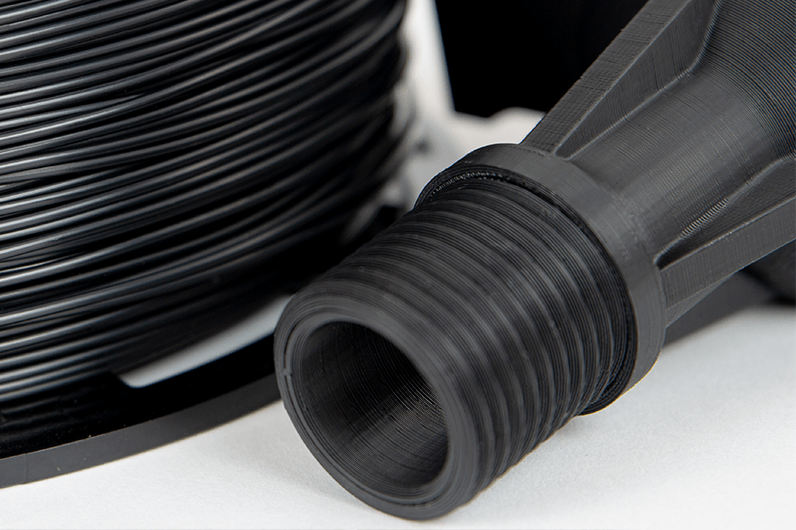

ASA

Thermoplastic that combines mechanical strength, UV resistance and water resistance.

Find out more
hips

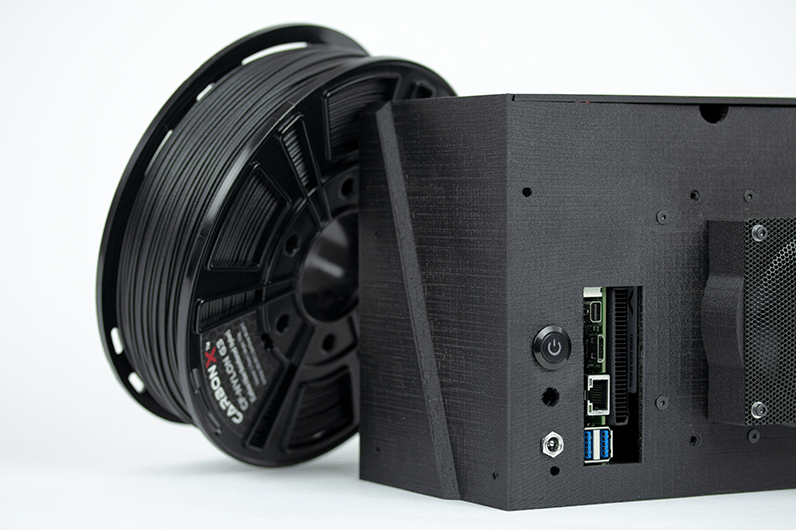

PA-CF

Highly chemically and heat resistant industrial material.

Find out more
asa

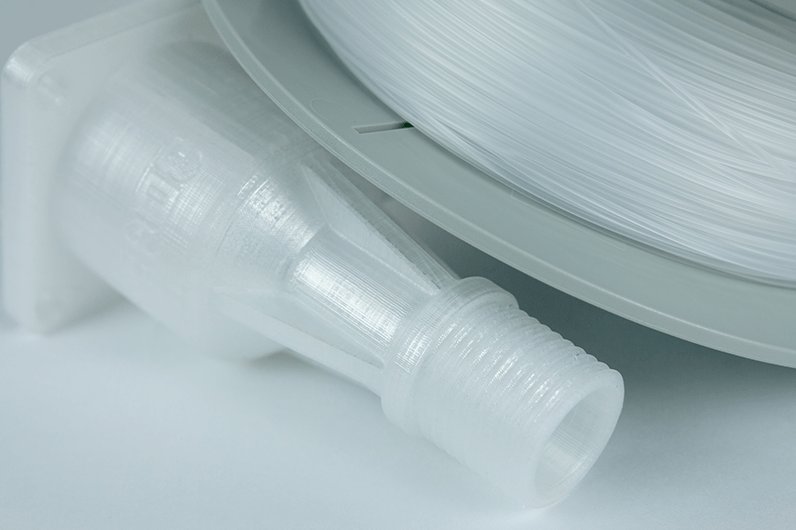

PP

Offers excellent print quality, high fatigue, mechanical strength and good thermal resistance.

Find out more
pc

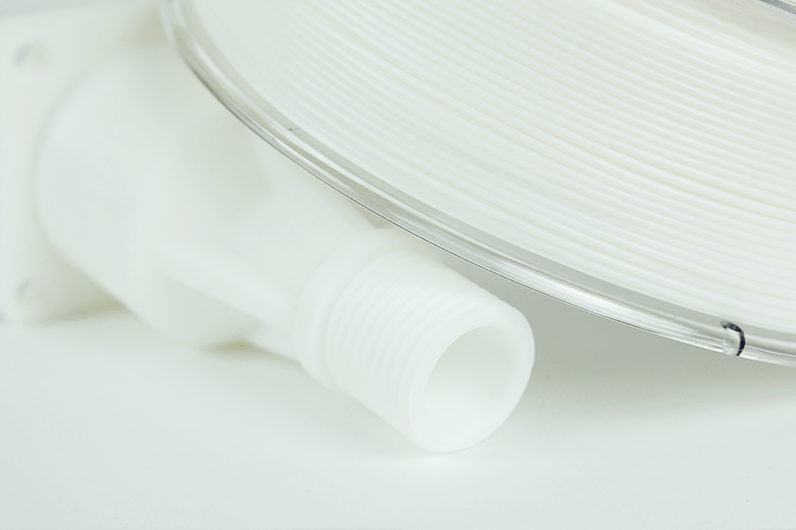

HIPS

Polystyrene-based polymer similar to ABS but its mechanical properties are slightly higher.

Find out more
hips

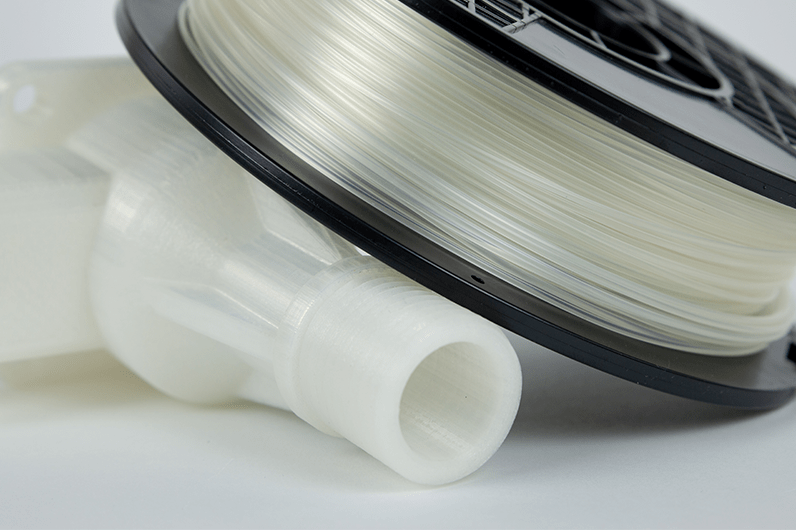

Nylon

Material approved for contact with food. Highly hygroscopic.

Find out more
asa

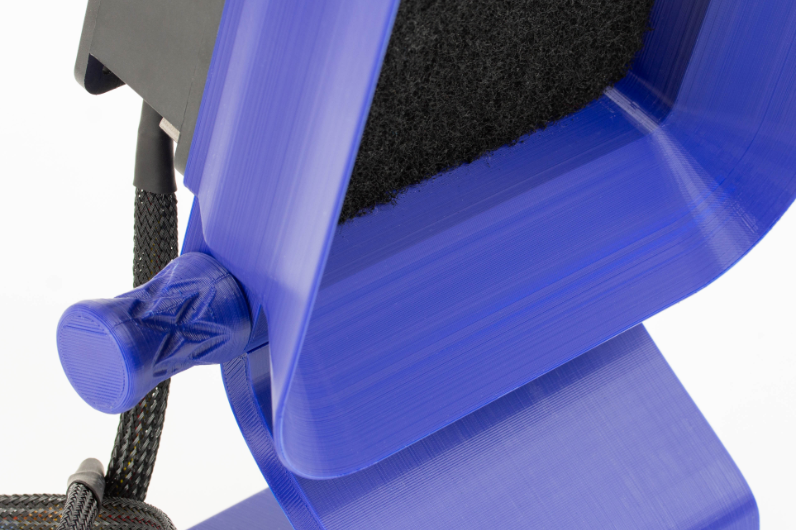

PLA

Biodegradable thermoplastic polymer, that is produced out of renewable resources.

Find out more
pc

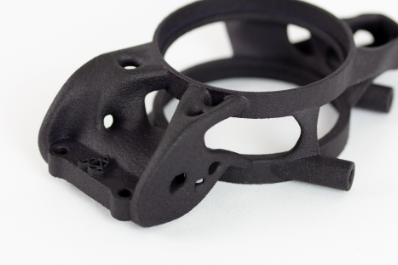

BVOH

Water-soluble support material. No need to manually deal with supports.

Find out more





Technical specification

Print Technology FFF
Build volume 260 × 300 × 340 mm (26 520 cm3)
Minimum layer height 40µm
Number of printheads 2 per module
Nozzle diameter 0.4/0.4 mm or 0.6/0.6 mm
Filament diameter 1.75 mm
Printhead temperature 500°C
Buildplate temperature 160°C
Chamber temperature 85°C (active heating)
Filament chamber temperature 70°C
Power requirements 230V
Max power draw 2700W
Communication USB drive, SD card
Slicing software 3DGence SLICER 4.0
Filtration Filtration unit
UPS device Yes, optional
Others Software access overdrive – remote shut down
