3DGence INDUSTRY F421

Dual extruder 3D printer designed for industrial applications where accuracy, speed, comfort and safety of the entire 3D printing process are crucial.

CONTACT US

Features

High speed

3DGence INDUSTRY F421 pushes the boundaries of the printing speed of industrial 3D printers.

The printing speed is the key aspect of the process. Print speed up to 400 mm/s and 1 meter per second of travel move makes INDUSTRY F421 a great tool. It’s a great machine for rapid prototyping but also a full-fledged additive manufacturing system for your business.

Large build volume

Large chamber volume gives you the opportunity to print large or many models in one run.

With the dimensions of 380 x 380 x 420 mm you can 3D print even larger models without splitting them or joining the parts later on. 3DGence INDUSTRY F421 has the best volume to price ratio in its class.

Composite ready industrial 3D printer

Print high-performance materials that are additionally reinforced to make your end-use parts even more durable.

3DGence INDUSTRY F421 can be equipped with hardware allowing to print safely from reinforced materials. Improve the production of your most heavily loaded construction parts.

Safety

Ensured user safety and work continuity.

With a focus on high-performance materials, it’s important to provide adequate emissions control. F421 filteration system offer unprecedented filtering efficiency among FFF AM platforms, capable of filtering: macro dust, nano dust (VOC, UFP), solvent vapour, noxious gasses, foreign particles.

3DGence INDUSTRY F421 can be equipped with hardware allowing to print safely from reinforced materials. Improve the production of your most heavily loaded construction parts.

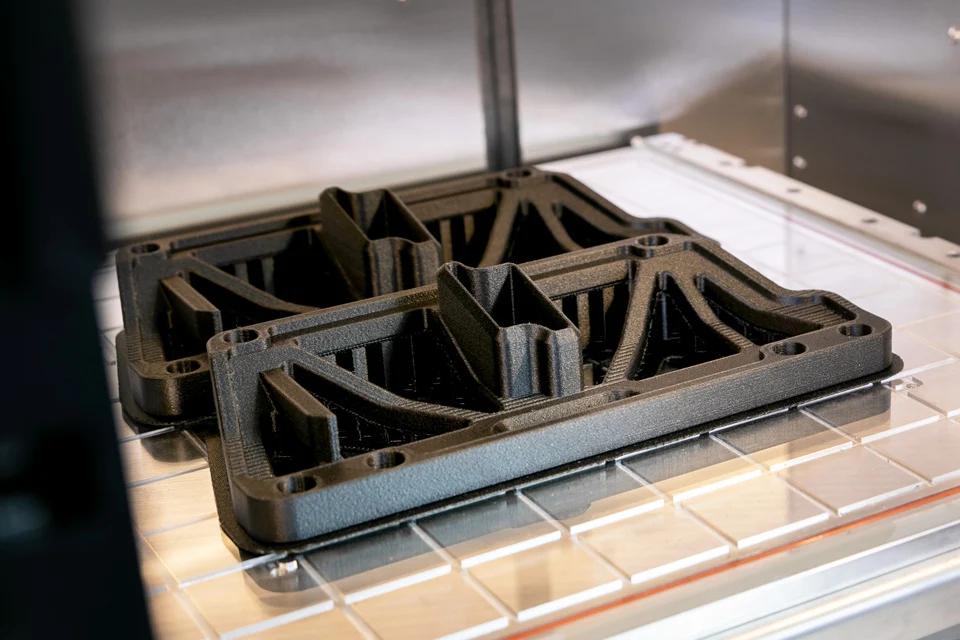

Interchangeable printing modules

Print high-performance and engineering materials that can be used by various industries.

3DGence INDUSTRY F421 features a modular approach to print capabilities. You don’t need to use multiple 3D printers anymore. Using job-specific printing modules combined with the predefined and engineered printing profiles you will always get the best quality of the prints. This unique solution makes INDUSTRY F420 and ideal PEEK, PEKK and ULTEM™ 3D printer.

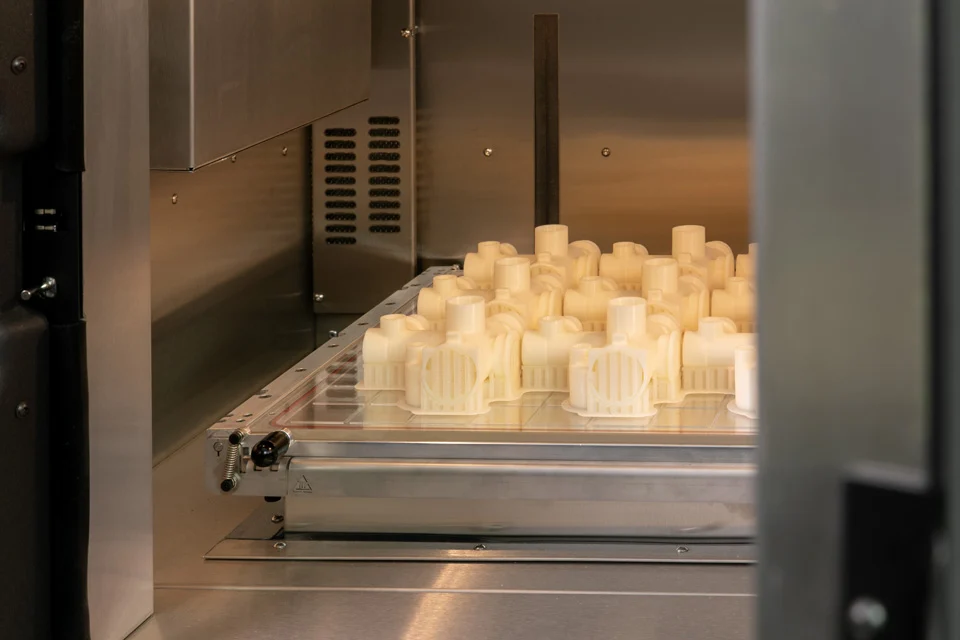

Heated printing chamber up to 180°C

The heated chamber reaches a high temperature and maintains it on a stable level.

Print engineering and high-performance materials with the perfect print quality, exceptional mechanical strength and great dimensional accuracy. High-performance filaments require stable printing process and high extrusion and chamber temperature.

Heated material chamber with automatic spool change system

Keep your materials always dry and ready to print.

Materials are kept in a stable environment due to the heated materials chamber. There are 4 material bays in the filament chamber: two dedicated for model materials and two for the support. When the material is running out, it will be automatically replaced in the extruder with the material from the second bay.

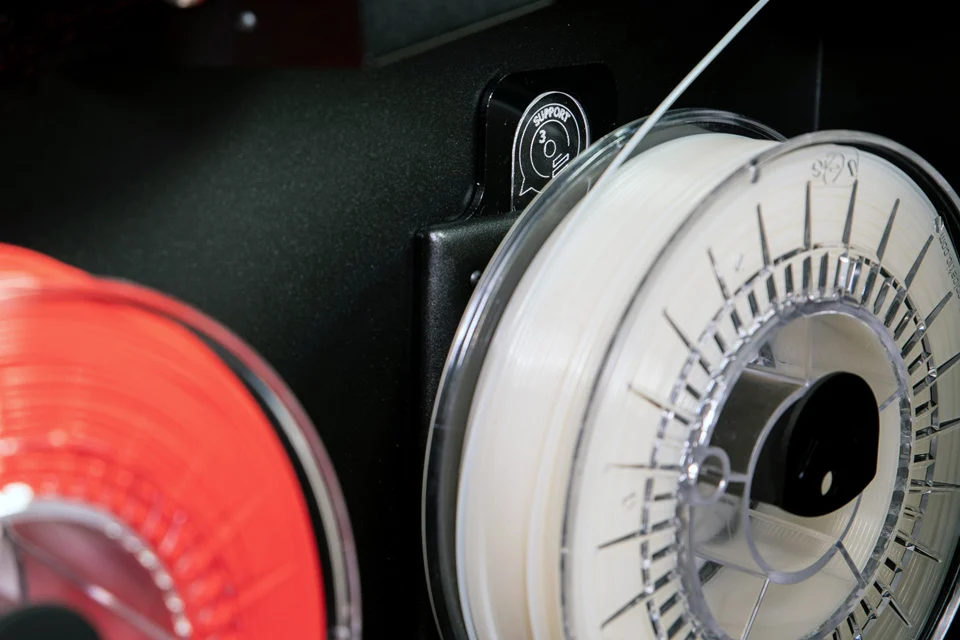

Smart Material Manager

Guarantee of optimal working conditions.

The NFC scanner collects data of the filament used during the printing process – optimal working conditions and maximum speed. The printer checks the information like weight, type, colour and percentage quantity of remaining filament loaded to make the process user-friendly.

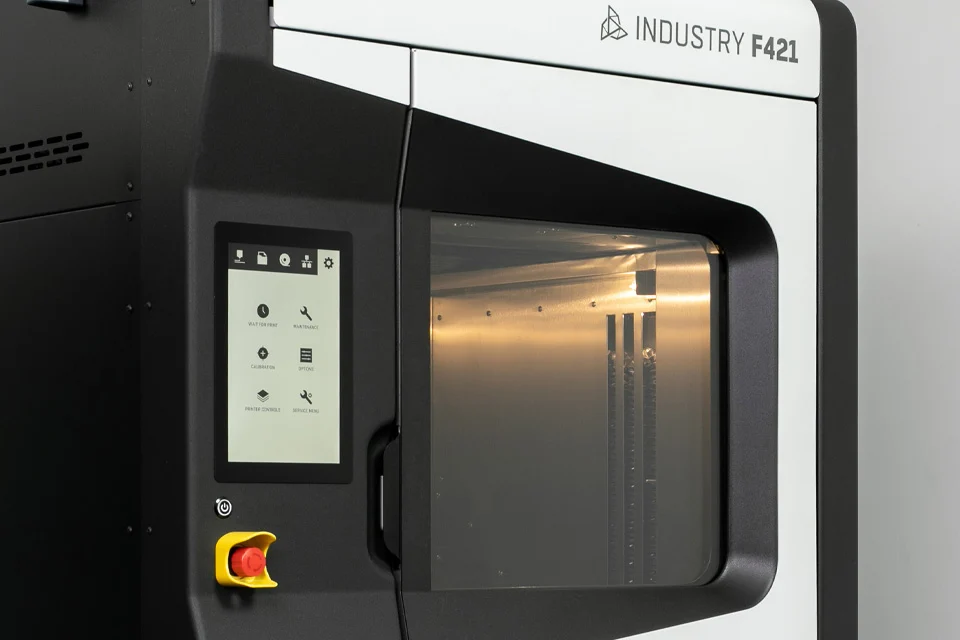

Autocalibration

Low maintenance solution. Always ready to print.

Modules and printer are calibrated automatically, this ensures print quality and dimensional accuracy. The printer does not require manual calibration at all.

Filaments

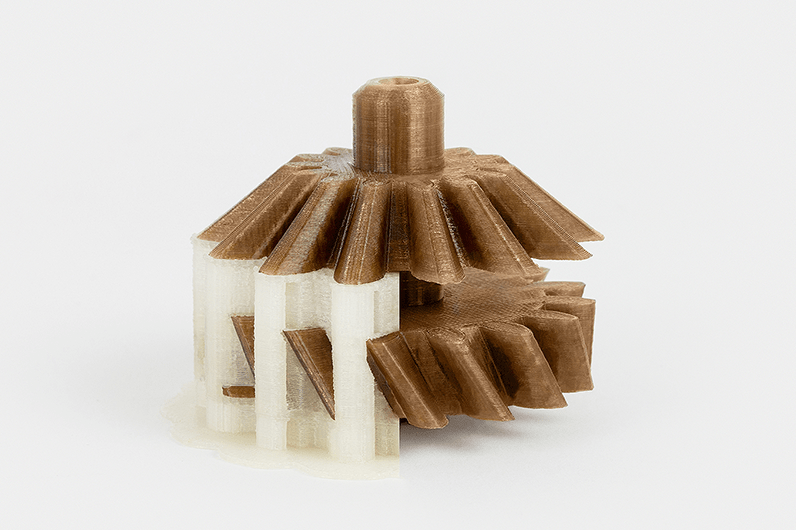

peek

PEEK

High-performance polymer from PAEK family which offers a unique combination of properties.

Find out more
ultem

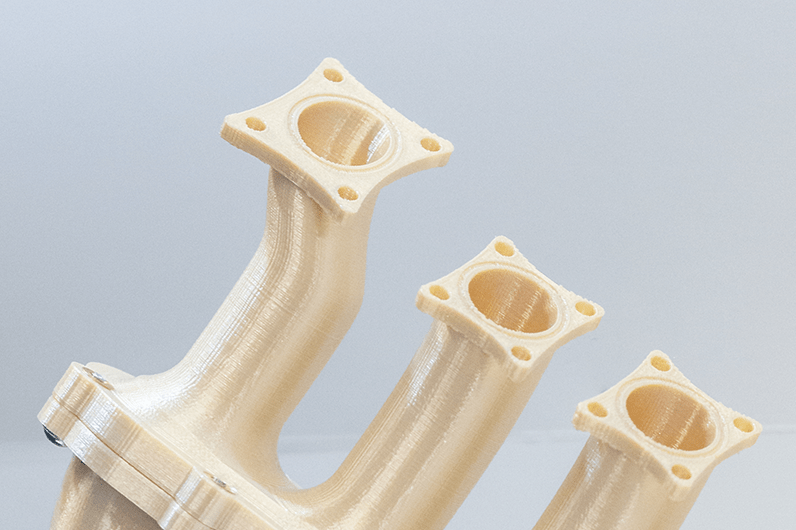

ULTEM™

High-performance polymer that is widely utilized in the most demanding market segments.

Find out more

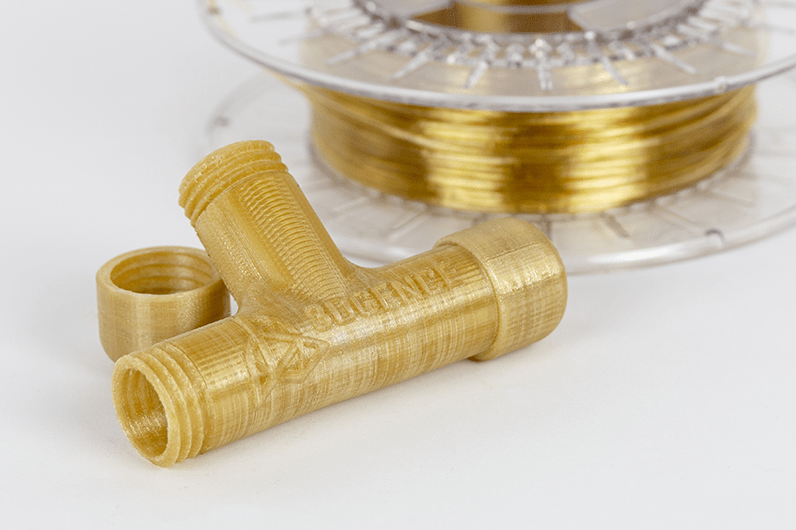

PEKK

PEKK

High-performance polymer of a PAEK family with a wide application range.

Find out more
asa

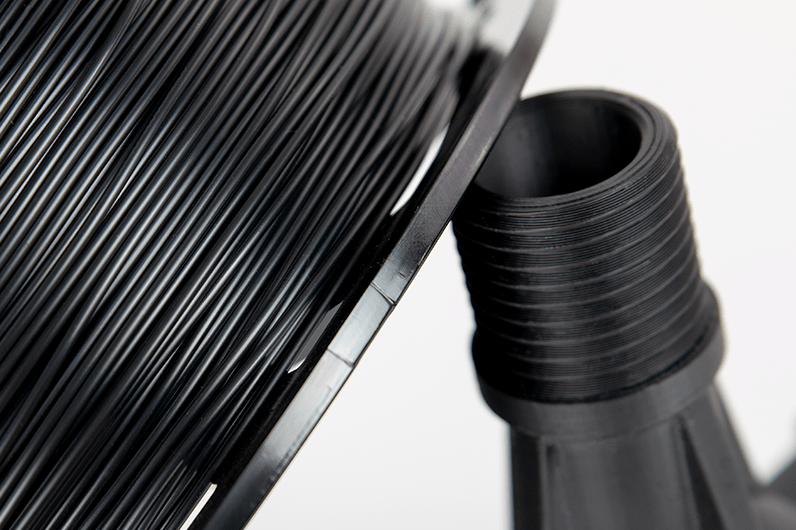

ASA

Thermoplastic that combines mechanical strength, UV resistance and water resistance.

Find out more
pc

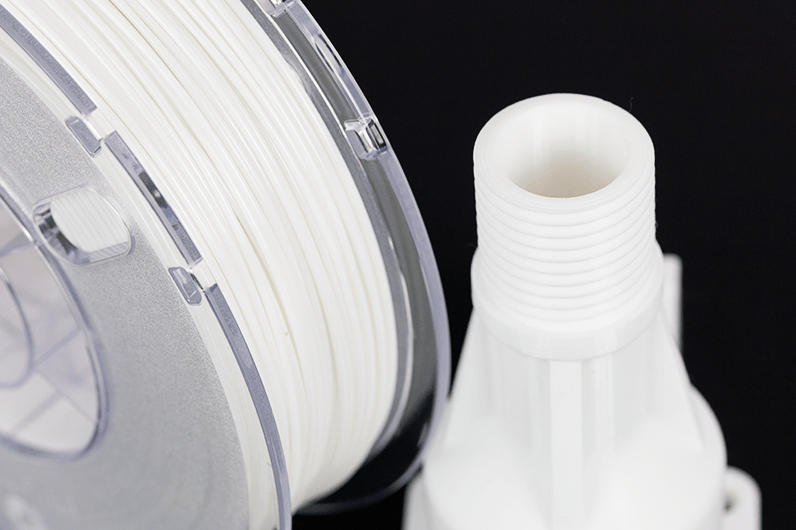

PC

One of the most durable, hardest and heat resistant engineering grade polymer.

Find out more
hips

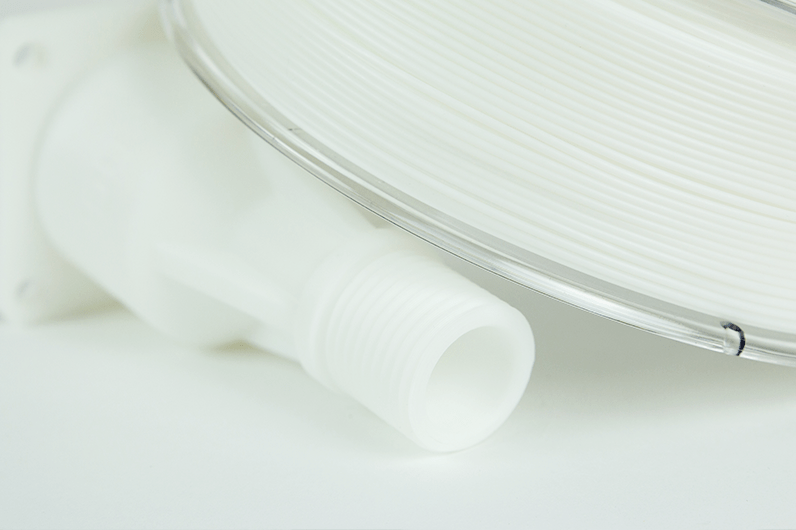

HIPS

Polystyrene-based polymer similar to ABS but its mechanical properties are slightly higher.

Find out more

Technical specification

Print Technology FFF
Build volume 380 x 380 x 420 mm (60 648 cm3)
Minimum layer height 50µm
Number of printheads 2, printhead purging system
Filament diameter 1,75 mm
Printhead temperature 500°C
Buildplate temperature 180°C
Chamber temperature 180°C (active heating)
Filament chamber temperature 50°C
Travel move 1000 mm/s
Printing speed Up to 400 mm/s
Power requirements 230V
Max. power draw 4600W
Average power draw 1500W
Communication Ethernet, Wi-Fi, USB drive
Slicing software 3DGence SLICER 4.0
Cloud based services 3DGence CLOUD
Filtration Advanced filtration unit
Sensors Main chamber door, top access hatch, thermal sensors, emergency switch
UPS device Yes, optional
Others Software access overdrive – remote shut down
