ASIGA MAX X

$17,000 ex GST
$15,000 ex GST

Flexible precision. The MAX X is Asiga's highest resolution jewelry production system with a re-configurable resolution of 27, 35 or 43 microns. Ideal for Dental, Audiology and Jewelery industries.

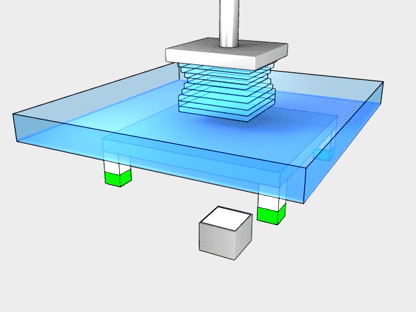

SPS™ Smart-Positioning-System Technology

Asiga's unique SPS™ process guarantees every layer is formed accurately. Accurate layer formation is the key to achieving consistently accurate results in any production environment.

Technical Specifications

Product specification MAX X27 MAX X35 MAX X43
Build Volume X, Y, Z 51.8 × 29.2 × 75mm
2.04 × 1.15 × 2.95 inches
67.2 × 37.8 × 75mm
2.65 × 1.49 × 2.95 inches
82.3 × 46.4 × 75mm
3.24 × 1.83 × 2.95 inches
Pixel Resolution 27µm 35µm 43µm
Technology DLP DLP DLP
LED Wavelength 385nm (high power UV LED) or 405nm
Material Compatibility Asiga materials, 100% Open Material System — use any suitable third party material
Software Asiga Composer software. Lifetime updates included
File Inputs STL, SLC, PLY, STM (Asiga Stomp file format)
Network Compatibility Wifi, Wireless Direct, Ethernet
Power Requirements 100 to 240 VAC, 50/60 Hz, ≤2 Amps
System Sizing 260 × 400 × 510mm / 21.5 kg    10.2 × 15.7 × 20 inches / 47.4 lb
Packed Sizing 400 × 510 × 630mm / 23.5 kg    15.7 × 20 × 24.8 inches / 51.8 lb
Warranty 12 months manufacturer's warranty
Technical Support Unlimited lifetime technical support included
Bundle Includes 3D printer, Composer software, 1 kg Asiga material, 1L build tray, Asiga Flash post-curing chamber, calibration toolkit
HP 3D Process Control

Composer

Composer is the software interface to all our 3D Printers. Powerful, intuitive and free.

HP 3D Center

Asiga Flash

A compact post curing device for curing parts after printing.

HP SmartStream 3D Build Manager

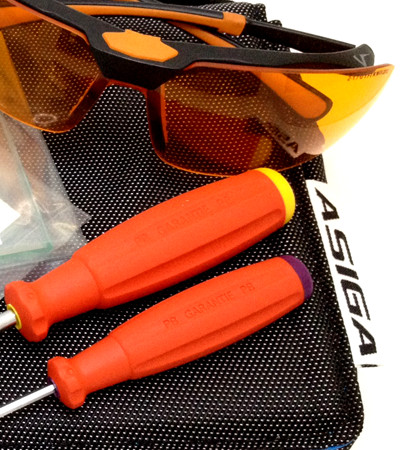

Calibration Toolkit

All the tools you need to calibrate your Asiga 3D printer.

HP SmartStream 3D Build Manager

Material Pack

1L Asiga material pack included. Material pack consists of 1L material bottle and 1L build tray.

Digital dentistry hero image

Digital Dentistry

From restorative dentistry to orthodentic devices. Produce surgical drill guides, removable die models, ortho models, custom impression trays, splints, partial frameworks, crown & bridge, inlays / onlays, gingiva and a range of dental appliances all on Asiga 3D printers.

Jewelry Manufacturing hero image

Jewelry Manufacturing

Reduce time to market further by adding an Asiga 3D printer to you bench. Extraordinary surface smoothness and impeccable detail definition, unlike anything you've seen before.

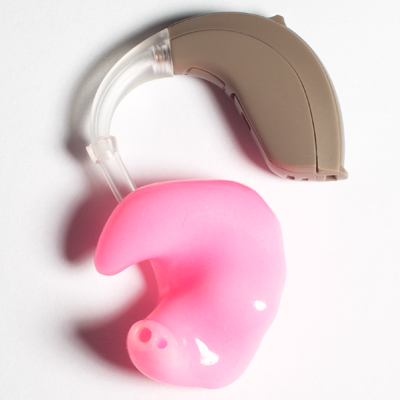

Digital Audiology hero image

Digital Audiology

Precision, speed and productivity make Asiga 3D printers the ideal choice for a digital audiology workflow.

∗ Specifications subject to change without notice.
∗∗ Material dependent.
