PostPro SF50/SF100



Chemical Vapor Smoothing

PostPro Chemical Vapor Smoothing process is a physio-chemical process that can smooth a wide variety of thermoplastic polymers.

The process is non-line-of-sight and can smooth complex internal cavities of polymer parts.

PostPro vapor smoothing technology is highly controllable, allowing reproducible results with no degradation of a parts’ mechanical properties.

The process has been evolved from the PUSH process, developed at the University of Sheffield.

Benefits of PostPro Vapor Smoothing

Surface smoothing process that improves the part performance, seals the surface, and offers an injection molding look and feel. Combined with UL & CE certification, the patented PostPro vapor smoothing technology is recommended by the world leading additive manufacturing players.

SURFACE ENHANCEMENTS

PostPro vapor smoothing enhances performance and aesthetics of each part. Sealed surfaces are easier to dye, easier to certify for skin and food contact, while keeping dimensional accuracy without marks from fixtures.

THROUGHPUT

Our throughput process allows for short cycle time, with perfect consistency from batch to batch. The large chamber size is ideal for high density of parts.

ACCESSIBILITY

Ease of use, ease of maintenance and vast material compatibility creates accessibility for diverse applications and industries. Ergonomic, safe and UL & CE certified.

Our products

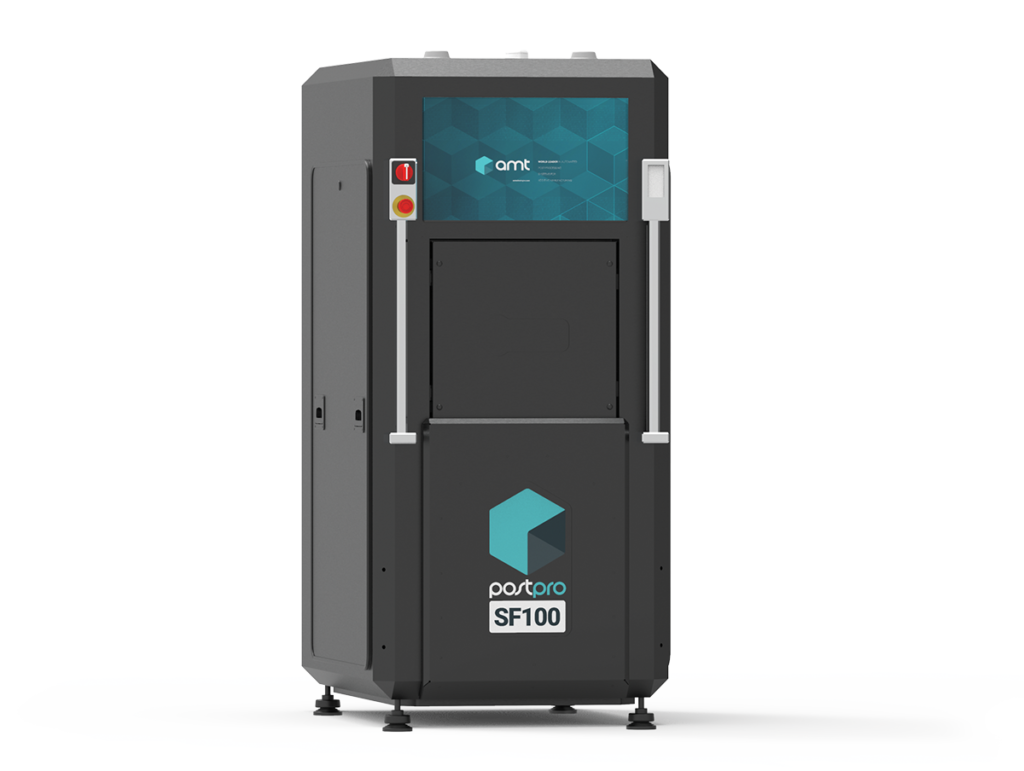

POSTPRO SF100

The PostPro SF100 is AMT’s next generation chemical vapor smoothing technology that sets new benchmark gold standards for the AM industry.

Designed for high volume production

Featuring Industry 4.0 automation and a processing chamber of 100 liters, the PostPro SF100 was designed to increase efficiency in terms of potential throughput, thus reducing cost-per-part.

Taking your parts to the next level

PostPro SF100 takes your parts performance to the next level. By enhancing your surface, not only does it create beautifully looking parts, but it also improves the mechanical performance and seals the surface enabling easy cleaning, dyeing, and coating, while keeping dimensional accuracy without marks from fixtures.

Small Footprint

Its compact and ergonomic form allows easier operation while taking up less valuable operating floor space.

Responsive image

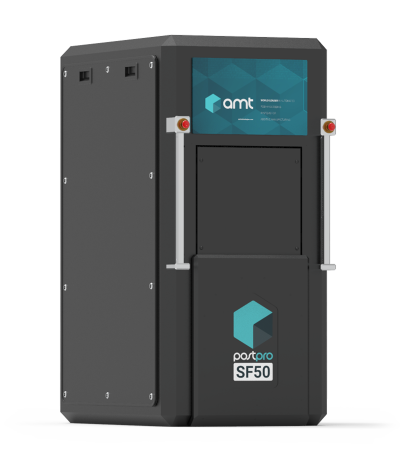

POSTPRO SF50

PostPro SF50 is a patented chemical vapor smoothing solution for post-processing thermoplastic 3D printed parts. Formerly known as PostPro3D MINI, this new generation technology includes advanced features providing a more efficient user and production experience.

Designed for prototyping and low volumes

With a 50 liter chamber, PostPro SF50 was developed for quick and efficient post-processing of prototypes and a series of smaller part sizes. Ideal for research and development, as well as design and production activities.

Plug-and-play

Industry 4.0 automation with the capability to seamlessly connect with external MES and ERP systems.

Responsive image

Performance enhancement

Card image cap
Increased mechanical properties

Due to the removal of surface porosity, extensive testing demonstrates that vapor smoothed demonstrated no loss in Ultimate Tensile Strength (UTS) with an increase in Elongation at Break (EAB).

Card image cap
Injection molded surface quality

Using a series of predefined parameters, chemical vapor smoothing achieves for the first time a surface finish that matches injection molding techniques with an RA of less than 1 micron.

Card image cap
Dimensional accuracy

The process does not degrade the mechanical properties of the parts. After vapor smoothing, parts exhibit no more than a 0.4%-dimensional change irrespective of the desired finish level.

Card image cap
Seals against liquid & gas intake

The vapor smoothing process completely seals the surface, eliminating liquid or gas intake.

Card image cap
Enhances colour

Vapor smoothing enhances the colour consistency and hue of coloured part. Additionally, parts that already have colour, such as HP MJF 580 parts, do not bleed in PostPro 3D machines.

Card image cap
Reduction in bacteria growth

Tests have shown the reduction of bacteria growth and attachment on parts that have been chemically vapor smoothed.

Compatibility

Elastomers
TPEs, TPUs, PEBAs, SBCs

Ultrasint® TPU01 for HP Multi Jet Fusion printers

  • Surface roughness reduction of over 1000%. ​
  • Processing provides parts with improved hardness shore, elongation-at-break and tear resistance ​
  • Uniform sealed surface ​
  • Shrinkage reaches a maximum of 1%.
Rigid Plastics

PA6, PA11, PA12, ABS, PC Arkema Rilsan® polyamide 11, Polypropylene(PP)

  • Surface roughness reduction of over 800%
  • Processing provides parts with improved ultimate tensile strength, yield stress and elongation-at-break
  • Quality sealed surface
  • Increased functionality
Performance & Composites

Carbon filled, Glass filled, Flame retardant, Nanocomposites HP Glass Filled polyamide 12

  • Increased durability
  • Increased thermal connectivity
  • Processing provides parts with improved elongation at break and ultimate tensile strength

Try it

TAKE YOUR PRODUCTION TO THE NEXT LEVEL

Compatible with all powder-bed and filament-based printing technologies: SLS, HP MJF, FDM, FFF, and FGF.

To see the results of PostPro treatment on your own 3D printed parts, send them to us for complimentary benchmarking.
