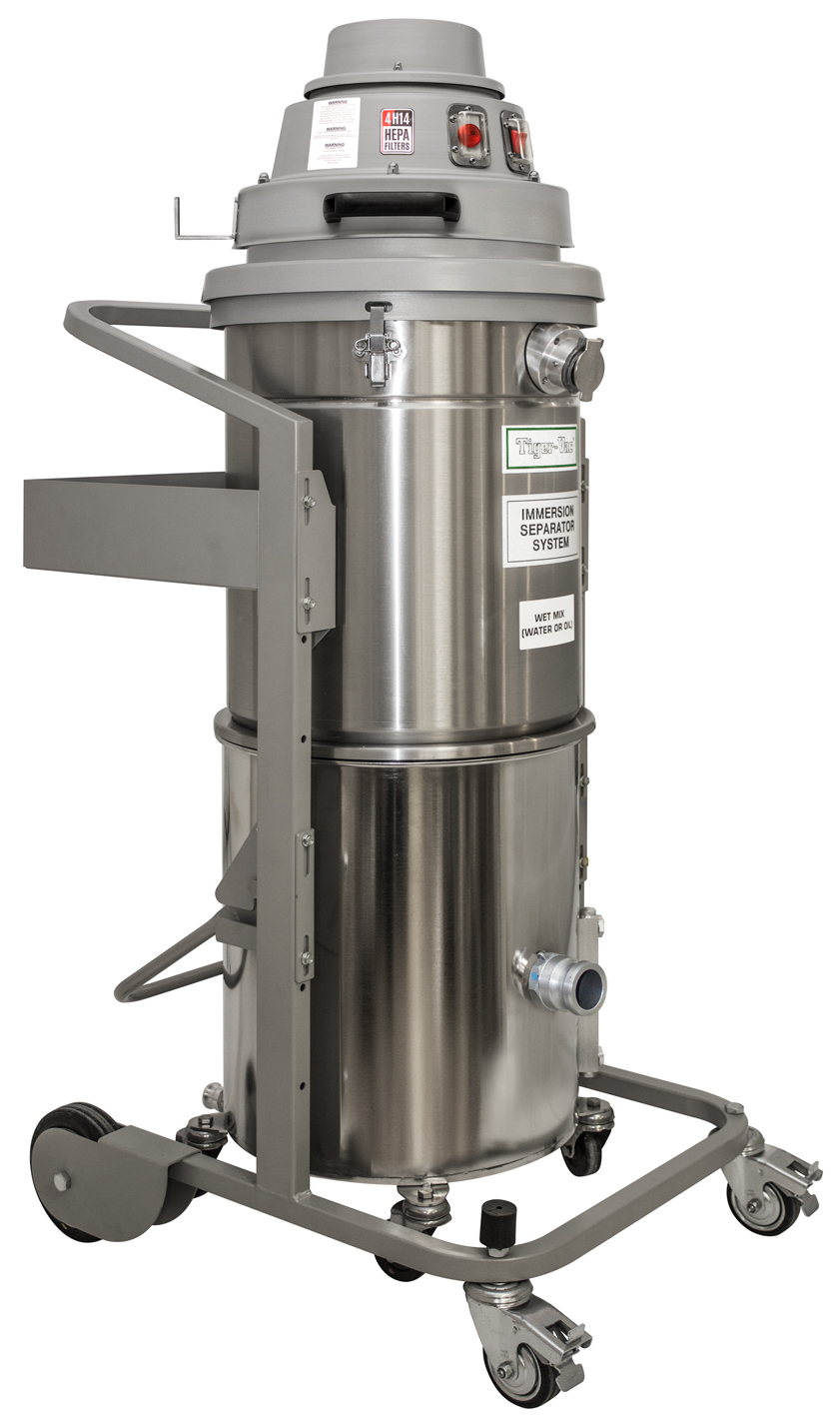

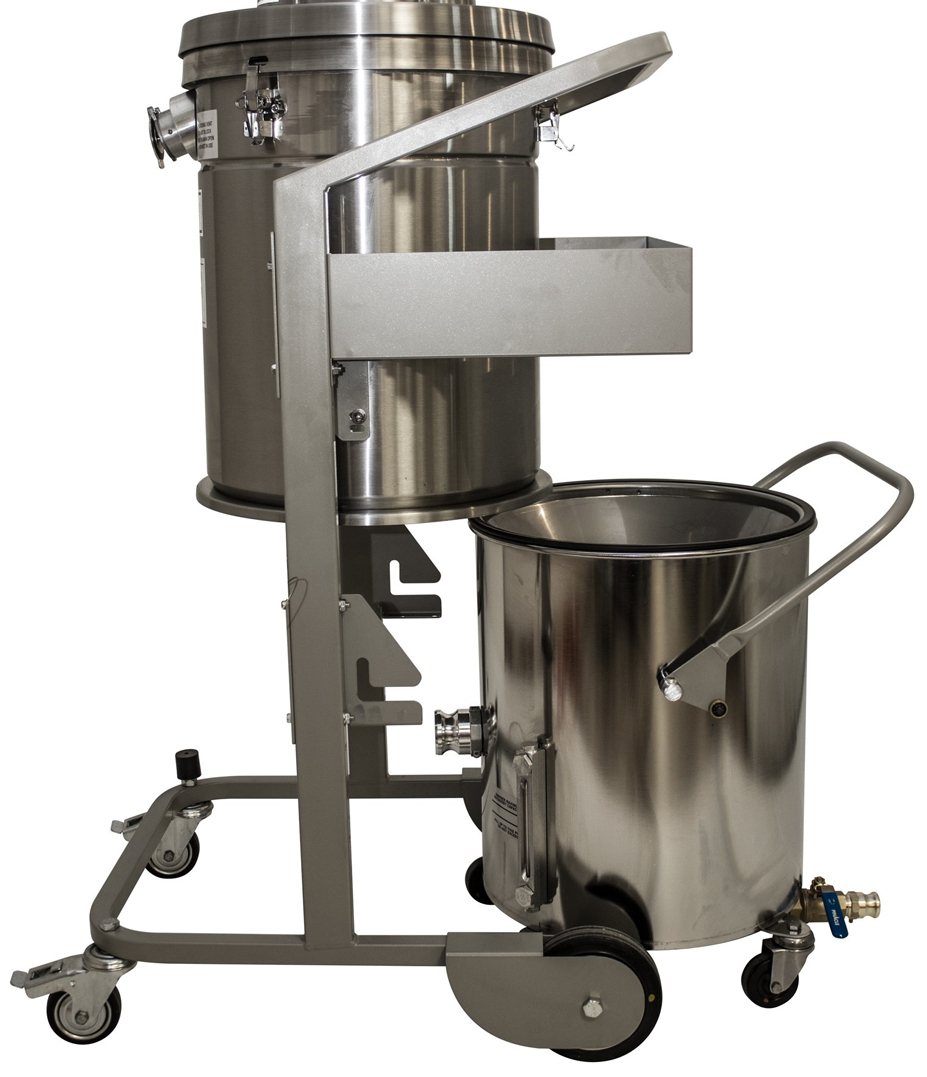

Atex Vacuum Model C-10 EX (IT-40L) DT (CFE) HEPA W/3D Tool Kit

  • Legally certified dust ignition protected by an OSHA approved Nationally Recognized Testing Laboratory (NRTL)
  • Enhanced Mini Immersion Separator - Wet Mix - Can be used with either water or oil
  • Designed for the recovery and INERTIZATION of combustible dust into a liquid immersion bath
  • Meets the requirements for a Liquid Precipitation Collector for metal dusts as outlined in NFPA 484
  • Electric
  • Coalescing Filter Element (CFE) for moisture removal. HEPA Grade. 99.97% efficiency at 0.3 micron

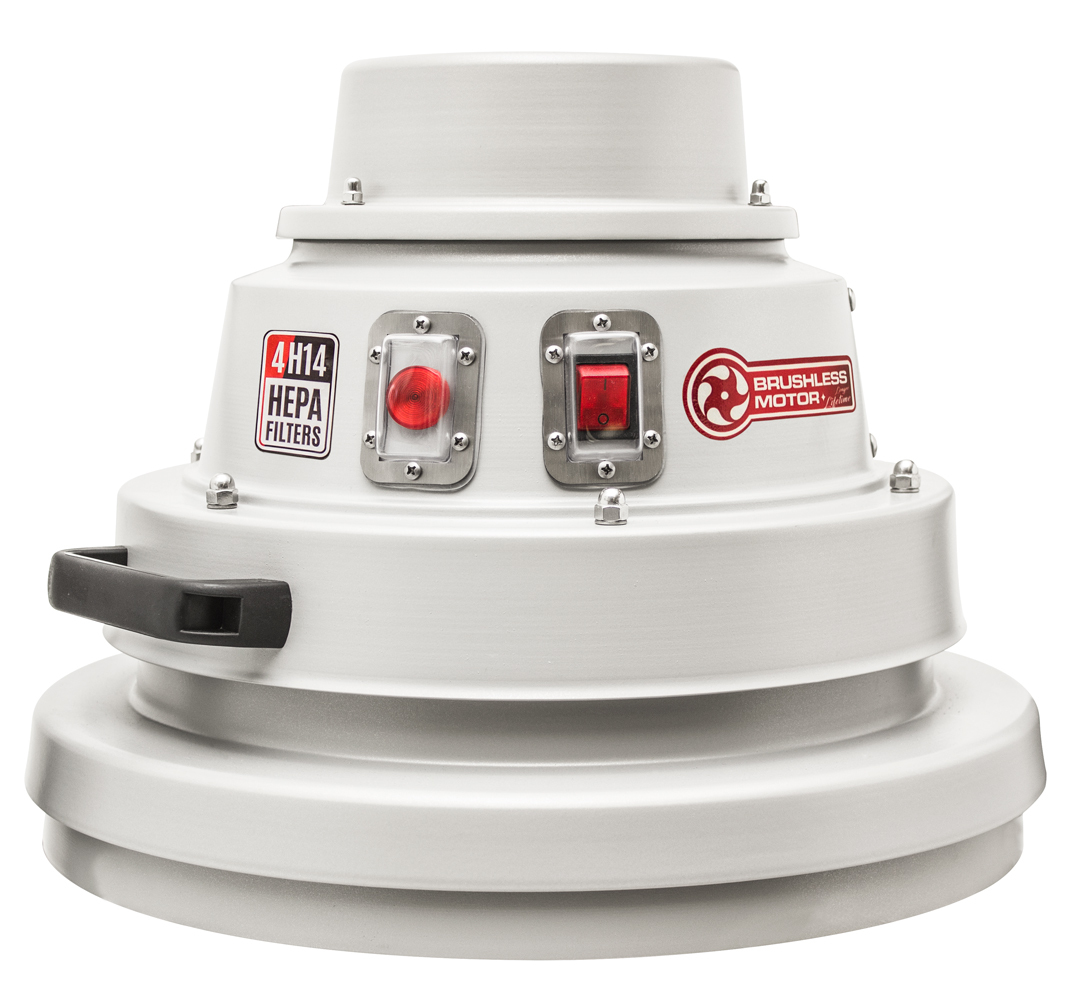

  • Heavy duty 2-stage by-pass motor
  • Longer life brushless motor. Always with 4 x H14 HEPA filters

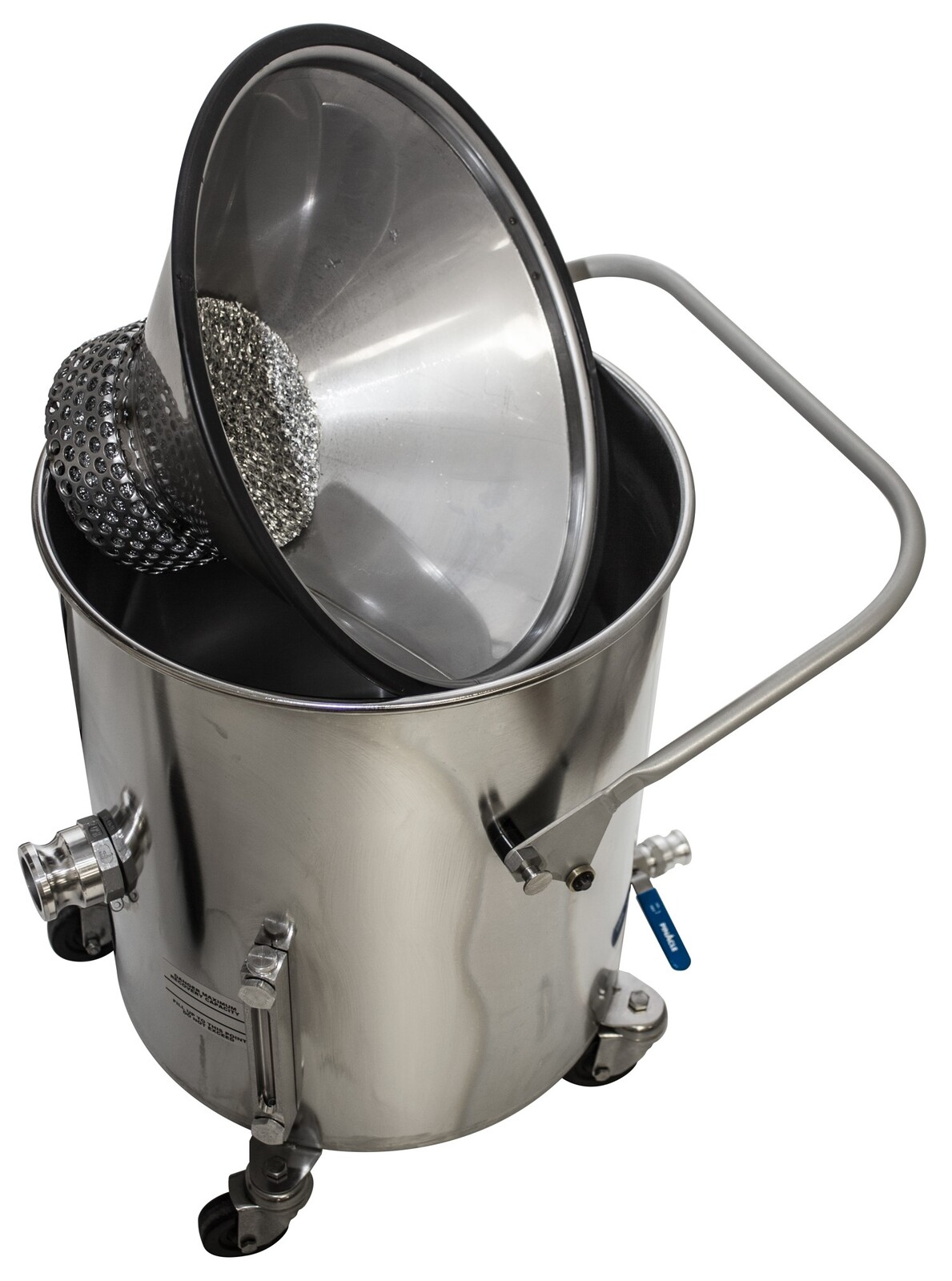

  • Recovery tank made of stainless steel SAE Type 304
  • Disposable collection bag (conductive) - included

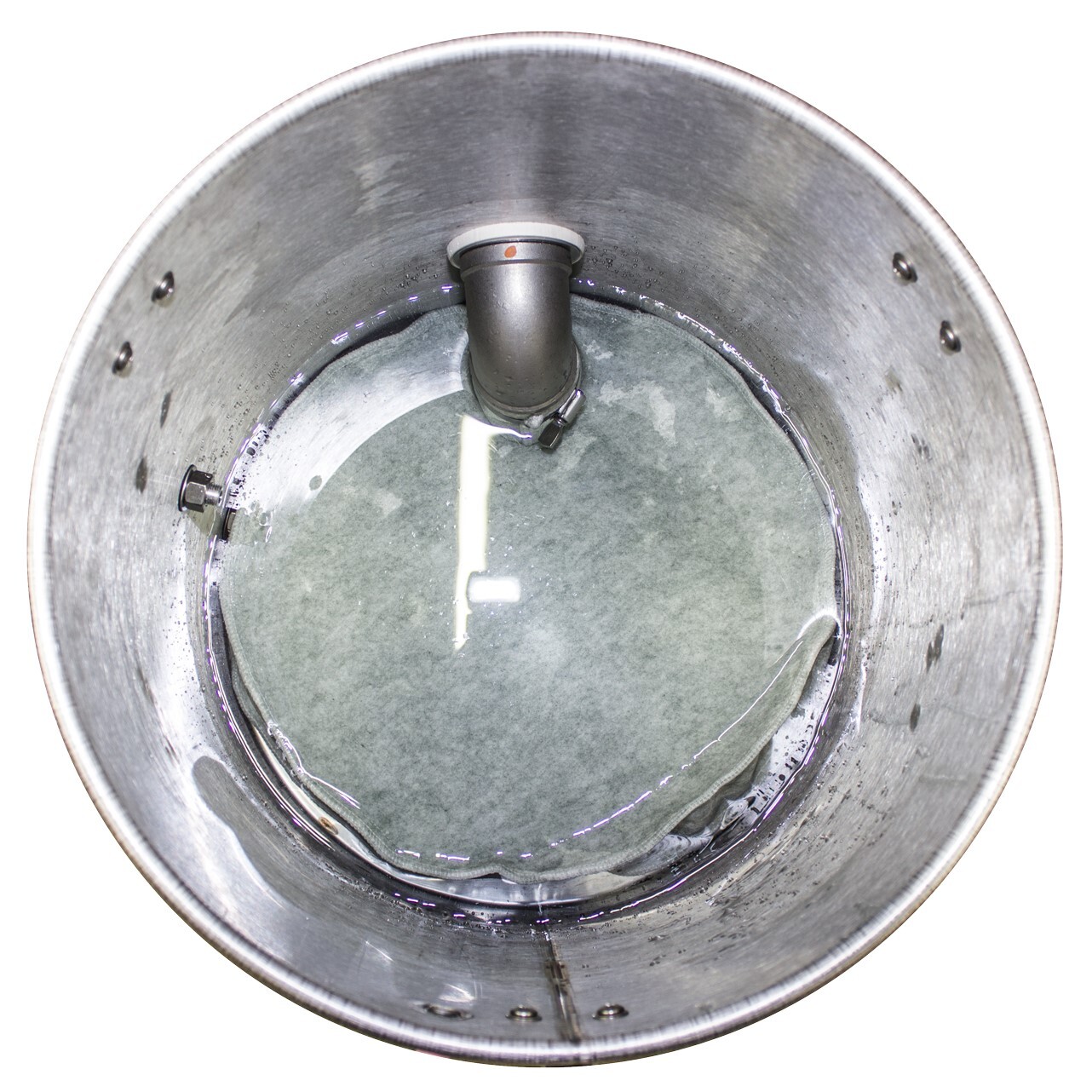

  • Recovery capacity - 3.25 gal. (12.3L) of liquid is required in the recovery tank. The conductive "wet" Recovery Bag has a recovery capacity of 4.5L (1.5 gal.)
  • Degassing vent allows gas to be evacuated automatically from the unit
  • Equipped with a liquid level indicator
  • Includes a complete static dissipative tool kit

Includes:

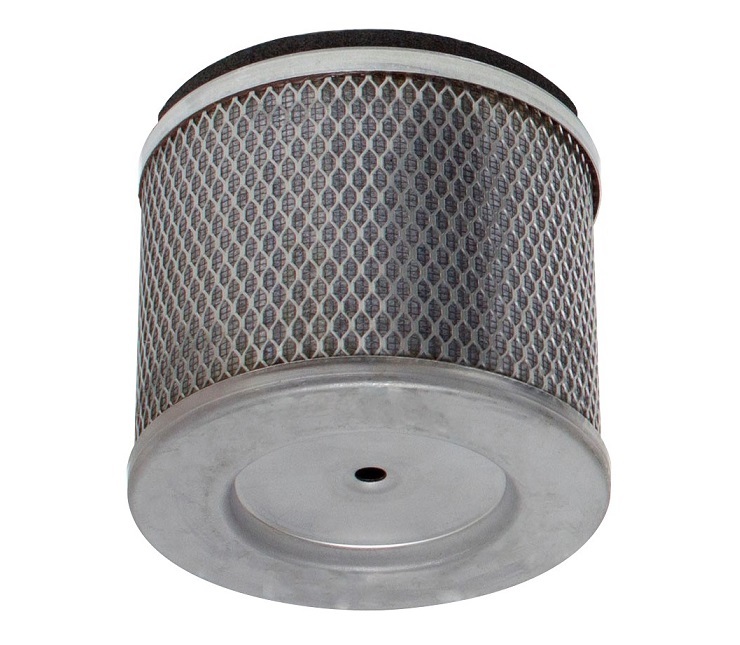

  • (1) 215372 - HEPA FILTER WITH GASKETS ON BOTH SIDES, 99.99% ON 0.3 MICRON, 11.522" OD x 9.066" ID x 2" HIGH
  • (1) 211854 - HEPA FILTER (H14) WITH GASKET, 2"(50mm) HIGH
  • (1) 215792A-HEPA - REPLACEMENT COALESCING FILTER ELEMENT, HEPA GRADE, 4.75" HIGH, w/NITRILE GASKET #219259-04
  • (1) 218282 - MIST ARRESTOR SCREENS, MADE OF ALUMINUM MESH, FOR IT-40L (SET OF 6 SCREENS)

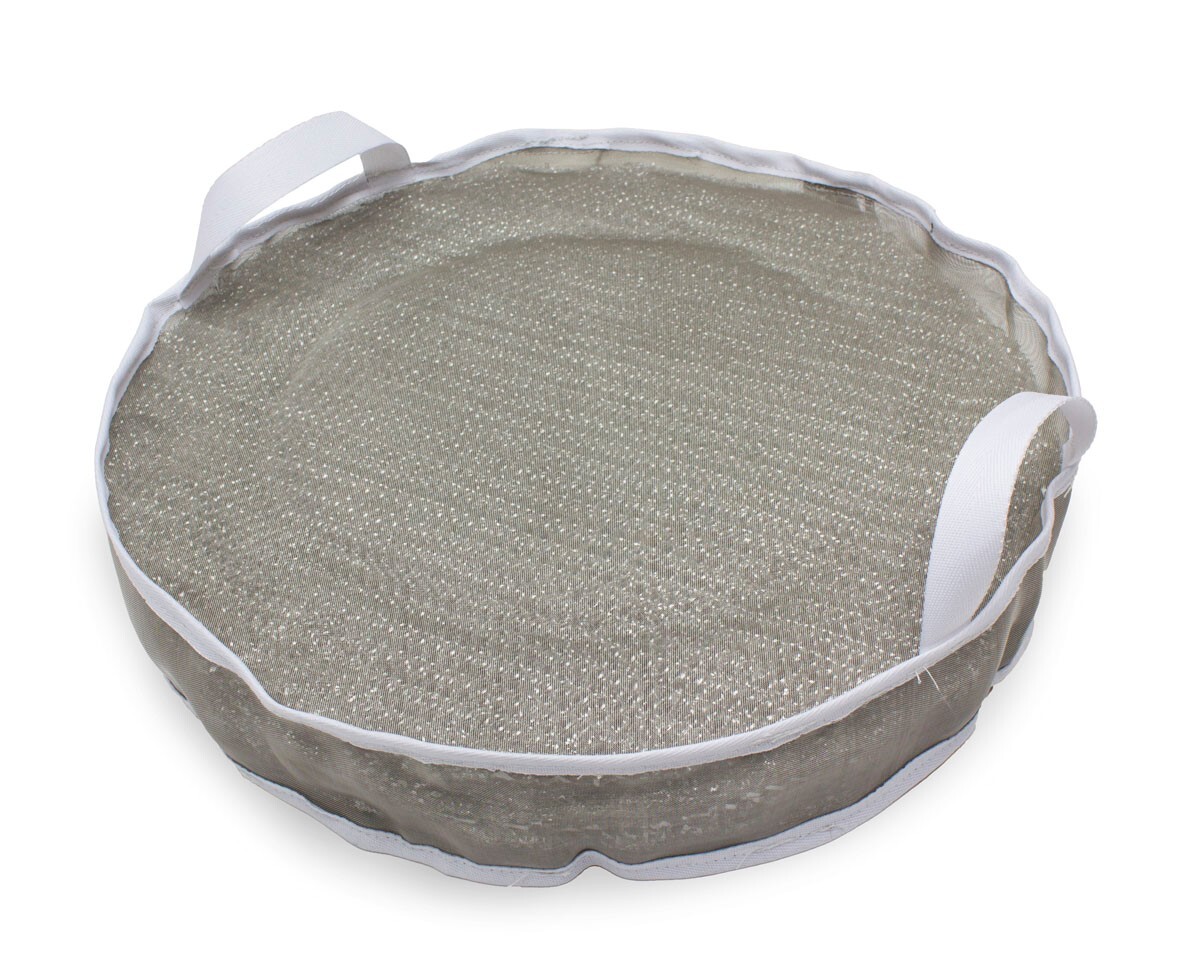

  • (1) 218284 - MIST ARRESTOR PACK ASSEMBLY (ALUMINUM SCREENS WITH STAINLESS STEEL MESH)
  • (1) 219992A - CONDUCTIVE RECOVERY BAG FOR IT-40L MINI ENHANCED
  • (1) 219992 - CONDUCTIVE RECOVERY BAG FOR IT-40L MINI ENHANCED (PACKAGE OF 3)

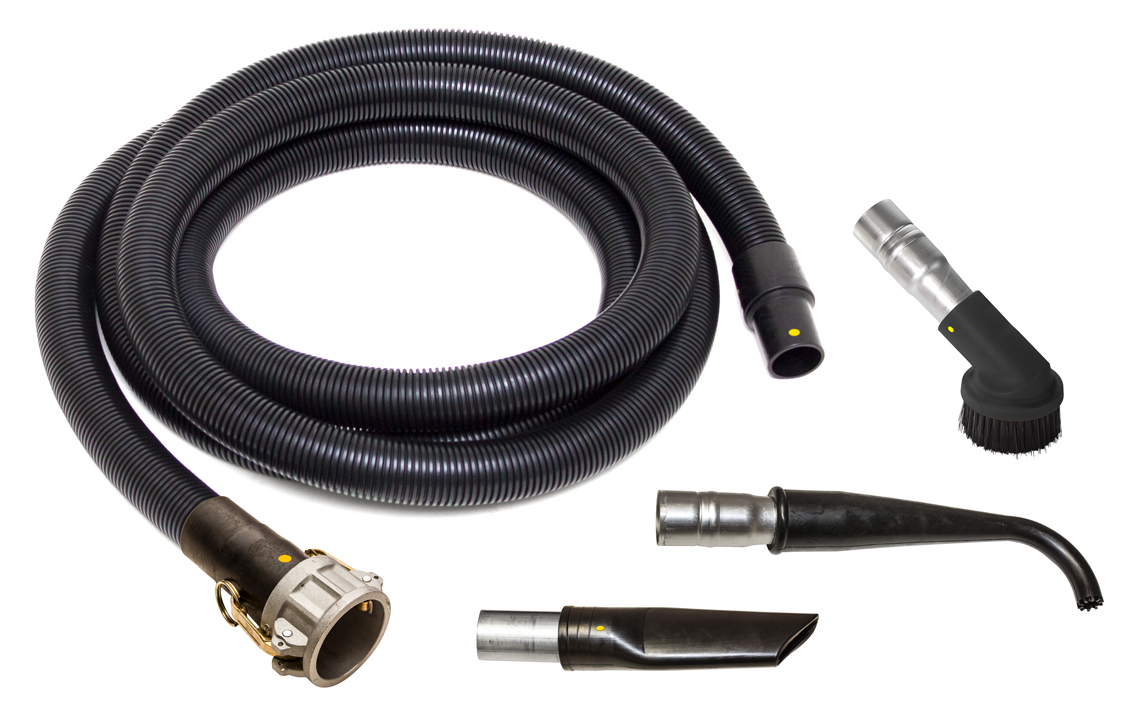

  • (1) 383440 - STATIC CONDUCTIVE CRUSHPROOF SUCTION HOSE ASSEMBLY 1.5"(38mm) x 10'(3m) FOR 1.5" CAMLOCK INTAKE
  • (1) 381818 - CREVICE TOOL 1.5"(38mm) x 8"(20cm) w/1.5" ALUMINUM TUBE, BLACK RUBBER, CONDUCTIVE & OIL RESISTANT
  • (1) 383312A - ROUND BRUSH ASSEMBLY, ESD SAFE PLASTIC, FOR USE WITH 1.5" (38mm) HOSE
  • (1) 383462 - CONICAL NOZZLE ASMBLY w/CURVED TIP, 10"(25cm) CONDUCTIVE RUBBER, PRESSURE FIT (323562+381155A-H)

Optional:

  • (1) 228093 - DEPRESSOR CAGE FOR CONDUCTIVE WET RECOVERY BAG FOR IT-40L, MADE OF TYPE 304 STAINLESS STEEL
  • (1) 381477 - DOUBLE BEND WAND (2pc) 1.5" (38mm) x 54" (137cm), CHROME, w/TAPER FOR PLASTIC FLOOR TOOLS
  • (1) 381448A - UTILITY FLOOR TOOL, Ø1.5"(Ø38mm) x 12"(30cm), STATIC CONDUCTIVE PLASTIC w/CONDUCTIVE NYLON BRISTLES



Certifications

CE EX  II 3D
Ex h tc IIIC T200°C (T85°C for BLSD version) Dc IP6X

LCIE 19 ATEX 1001 X

IECEx 3rd Party Certified

Ex h tc IIIC T200°C (T85°C for BLSD version) Dc IP6X
IECEx LCIE 15.0048



ESD Safe Vacuum Systems for Hazardous Locations are designed to prevent ignition hazards.
We use metal parts or Static Dissipative Powder Coating to prevent Electrostatic Discharge (ESD)

(VAC001-2)

Specifications 113179B-BL3D
Model Name C-10 EX (IT-40L) DT (CFE) HEPA BLSD W/3D TOOL KIT
Type (Powerhead) Electric
Tension 220-240 V
Frequency 50/60 Hz
Phase Single
Wattage 1100 W
Power 1.1 kW
Amperage 8 A
Air Flow 215 m3/h
Vacuum Pressure 2250 mm H20
Sound Level 72 dB(A)
Type of Power Outlet Not Included
Suction Inlet 38 mm

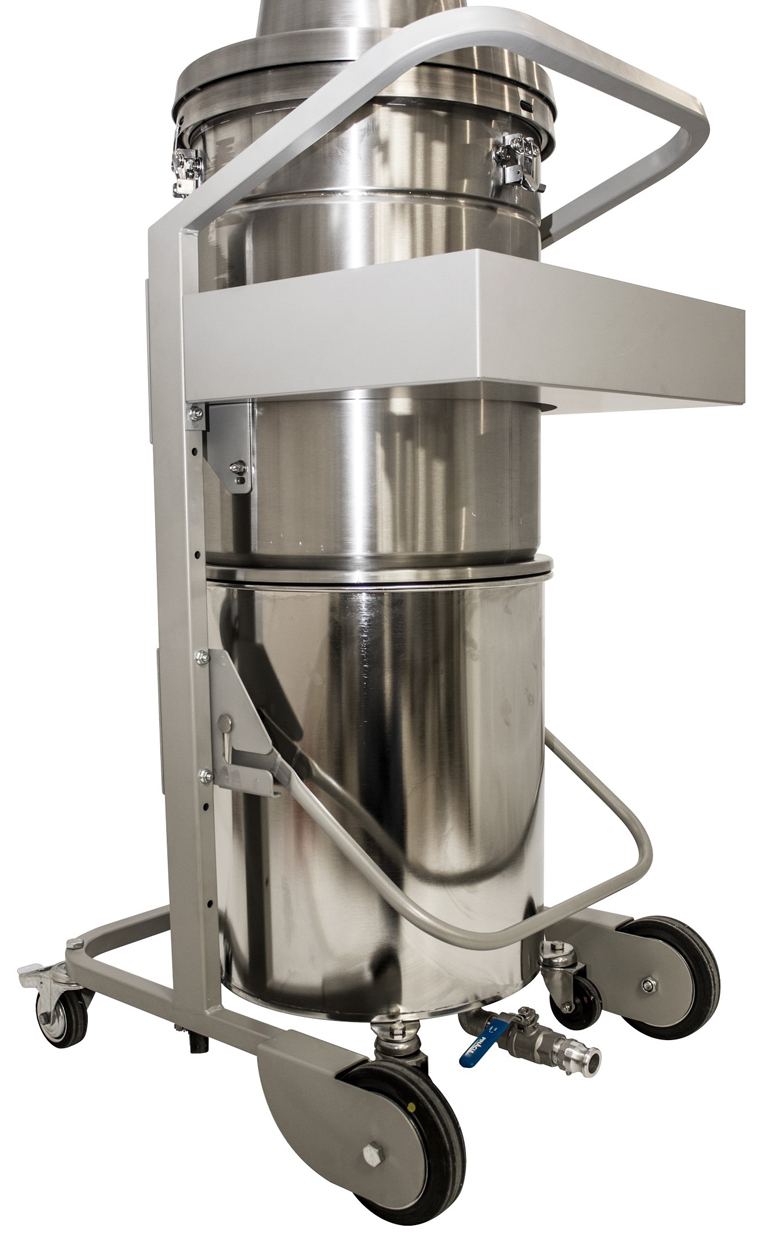

Cart Type Detachable Tank (DT)
Filter Cleaning Liquid Immersion Bath/Conductive Wet Recovery Bag
Recovery Capacity (in Conductive Recovery Bag) 4.5L (1.5 Gal)
Length 66 cm
Width 56 cm
Height 137 cm
Weight (Vacuum Only) 42 kg.

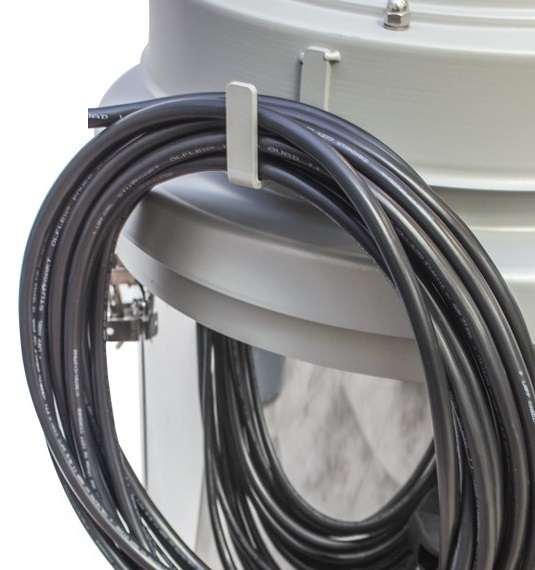

Cord Length 10.6 m

Please note that specifications are subject to change without notice

SKU VAC001-2
Brand TigerVac
Shipping Weight 71.0000kg
Shipping Width 0.750m
Shipping Height 1.500m
Shipping Length 0.720m
Shipping Cubic 0.810000000m3
