This connects under the main extruder head and heats up to 260 degrees, includes nozzle. Highly recommended to have a spare one.

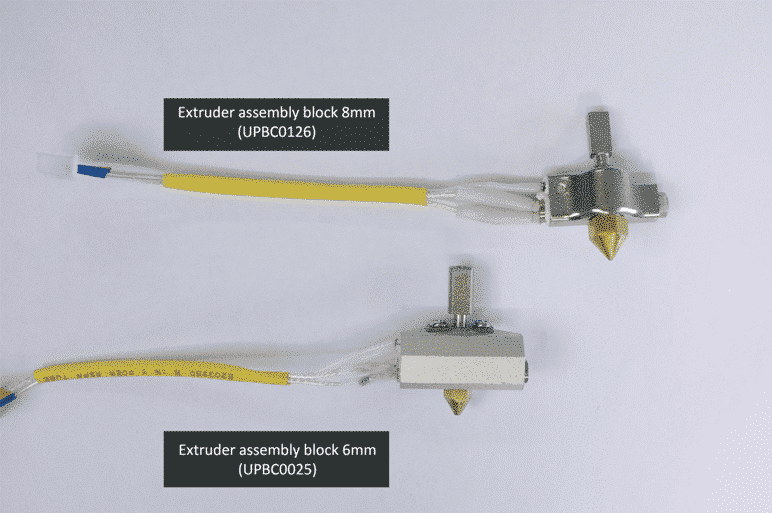

Since the UP 3D Printers first started production, they have come out with 3 different types of extruder blocks from versions 1 to 3. Versions 1 & 2 have been discontinued. We only supply v3 extruder blocks and these have an 8mm nozzle and comes in either brass or stainless.

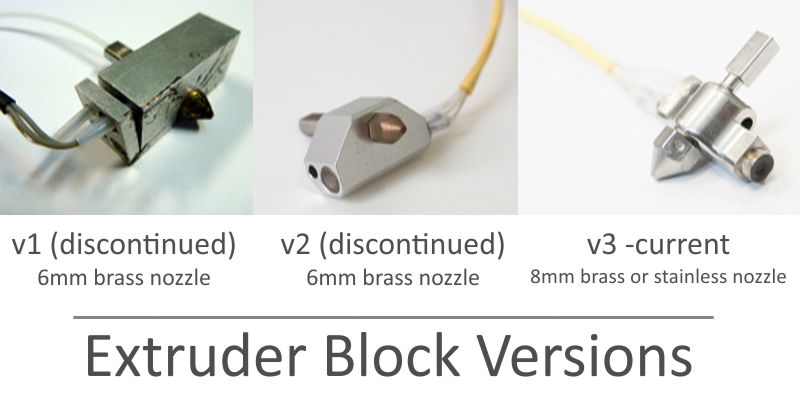

You can identify the version of your extruder assembly by the features below;

  • v1 has a 6mm brass nozzle with a coloumn size of 4x6mm
  • v2 has a 6mm brass nozzle with a coloumn size of 4x6mm
  • v3 has a 8mm steel/brass nozzle with a coloumn size of 4x5mm

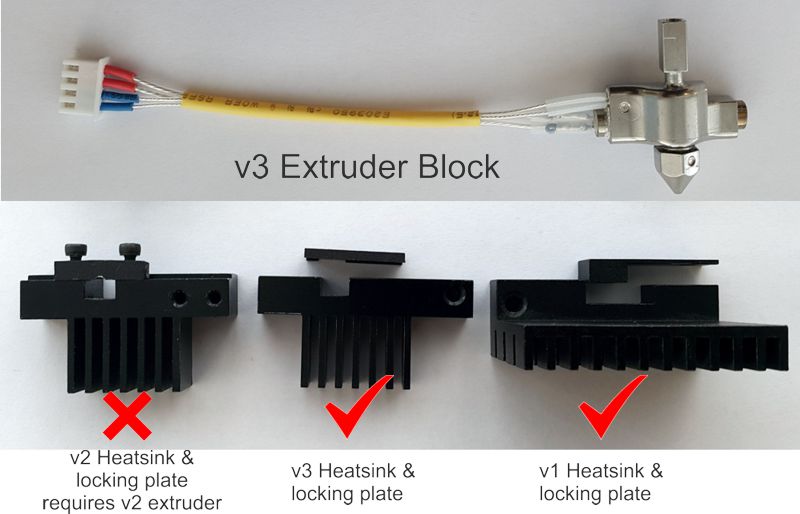

The v3 extruder blocks are suitable for UP Mini, UP Plus 1, UP Plus 2 and UP Box 3D Printers. However you do need to check that v3 extruder block is compatible with your printers heatsink.

If you have a v2 heatsink, you'll need to purchase a v3 heatsink.

(UPE001-0002)

SKU UPE001-0002
Brand Tiertime
Shipping Weight 0.2000kg
Shipping Width 0.150m
Shipping Height 0.300m
Shipping Length 0.500m

Be The First To Review This Product!

Help other EVOK3D users shop smarter by writing reviews for products you have purchased.

Write a product review
