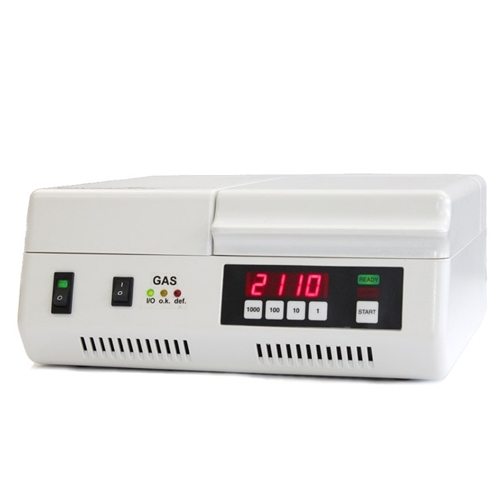

Otoflash G171-6 with nitrogen attachment (for CE: hearing and dental)
High-power flash-curing machine with protective gas port
Stock: Special Order ItemProduct Code: ENV218
$4,395.00
All prices in AUD (Ex GST)
Otoflash Post Curing Light Pulsing Unit
With Nitrogen attachement for CE requirements like hearing aids and dental
The Otoflash is a light polymerization chamber for the hardening/curing of light curing resins for jewelry, dental, and otoplastic applications. Two photoflash lamps at the bottom of the curing chamber operate in a work mode with a frequency of 10 flashes per second. The photo-flash lamps produce a very intensive light radiation in a spectrum from 300 up to 700 nm. Because of this intensive light radiation, a better hardening of the materials is possible, resulting in materials with good physical values and reduced content of residual monomer versus using other lamp types with a different light emitting spectrum.
The Otoflash G171-6 is compatible with connection to a supply of medical grade Nitrogen. Using Nitrogen prevents oxygen inhibition of polymerisation, surfaces are cured completely non-stick and there is no need to remove or wipe away the inhibition layer. Please note Nitrogen supply and connection equipment is not included with the Otoflash G171-6. EVOK3D does not supply Nitrogen biottles however to purchase the optional N2 regulator and connector follow this link: https://www.evok3d.com.au/nitrogen-gas-connecting-kit
Configuration:
- Size of the polymerisation space: 120 x 120 x 50 mm
- 1x holding tray for the curable items, type 360N2, transmits wavelengths 360-700 nm (= tray with UVB-block)
- 1x holding tray for the curable items, type 280N2, transmits wavelengths 280-700 nm (= tray without UVB-block)
- Protective gas appliance/port: N2
- Rated voltage: 100, 115, 230 Volts AC (adjustable by a selector)
- Rated frequency: 50/ 60 Hz
- Power input: app. 250 Watts
- Spectral distribution: 300-700 nm, maximum between 400 and 500 nm
- Flash-module: 2 flash-light bulbs, arranged below the device à 100 Watts *)
- Dissipated power: approx. 200 Watts
- Flash frequency: 10 flashes per second
- Digital timer: programmable from 1 to 9,999 flashes
- Measurements: LHW 310 x 310 x 140 mm
- Weight: approx. 7 kg
*life duration of the flash-bulbs: approx. 250 hours
(ENV218)
All our products come with a 12 month warranty on assembly errors and material defects from the date on the invoice.
Excluded from the guarantee are modifications of the unit as well as the flash bulbs, reflectors and all other parts of the unit which are subject to wear and tear.
The warranty becomes invalid if non-authorised personnel carried out repairs or alterations of the unit.
Exchanged parts become the property of EVOK3D. The warranty does not include any transportation costs.
- Dimensions of polymerisation chamber: 120 x 120 x 50 mm
- Number of light sources: 2 flashbulbs @ 100 w
- Capacity: 4 BTE-aids or 6 ITE-aids
- Rated voltage: 100, 117, 230 volt AC, adjustable by switch
- Rated frequency: 50/60 Hz
- Power input: 250 watt
- Spectral distribution: 280-700 nm, maximum between 400 and 500 nm
- Average flash power: 200 watt
- Flash frequency: 10 flashes per second
- Digital timer: adjustable from 1 to 9.999 flashes
- Dimensions: 310 x 310 x 140 mm
- Weight: 6 kg
| Machine Properties | |
|---|---|
| Operating Voltage | 100,115,230,volt AC, Selectable |
| Nominal Frequency | 50/60 Hz |
| Power Input | About 250 W |
| Radiated/Flashed Lamp Power | About 200 W (100 X/Lamp) |
| Light Power | Ca. 1/3 of lamp power ≈ 66 W |
| Spectral Distribution | 300-700 nm, max 400-500 |
| Light Power in Interesting Spectrum | Ca 1/3 of lamp power ≈ 11 W |
| Flash Rate | 10 flashes per second |
| Digital Timer | Adjustable from 1 up to 9999 flashes |
| Life Time | 300-500 hours operating time (10.8 - 18 Million flashes) |
| Curing Chamber | 120 x 120 x 50 mm |
| Outer Dimensions | 310 x 310 x 140 mm |
| Weight | 6kg |
| SKU | ENV218 |
| Brand | NK Optik |
| Shipping Weight | 10.0000kg |
| Shipping Width | 0.460m |
| Shipping Height | 0.370m |
| Shipping Length | 0.460m |
| Shipping Cubic | 0.078292000m3 |
