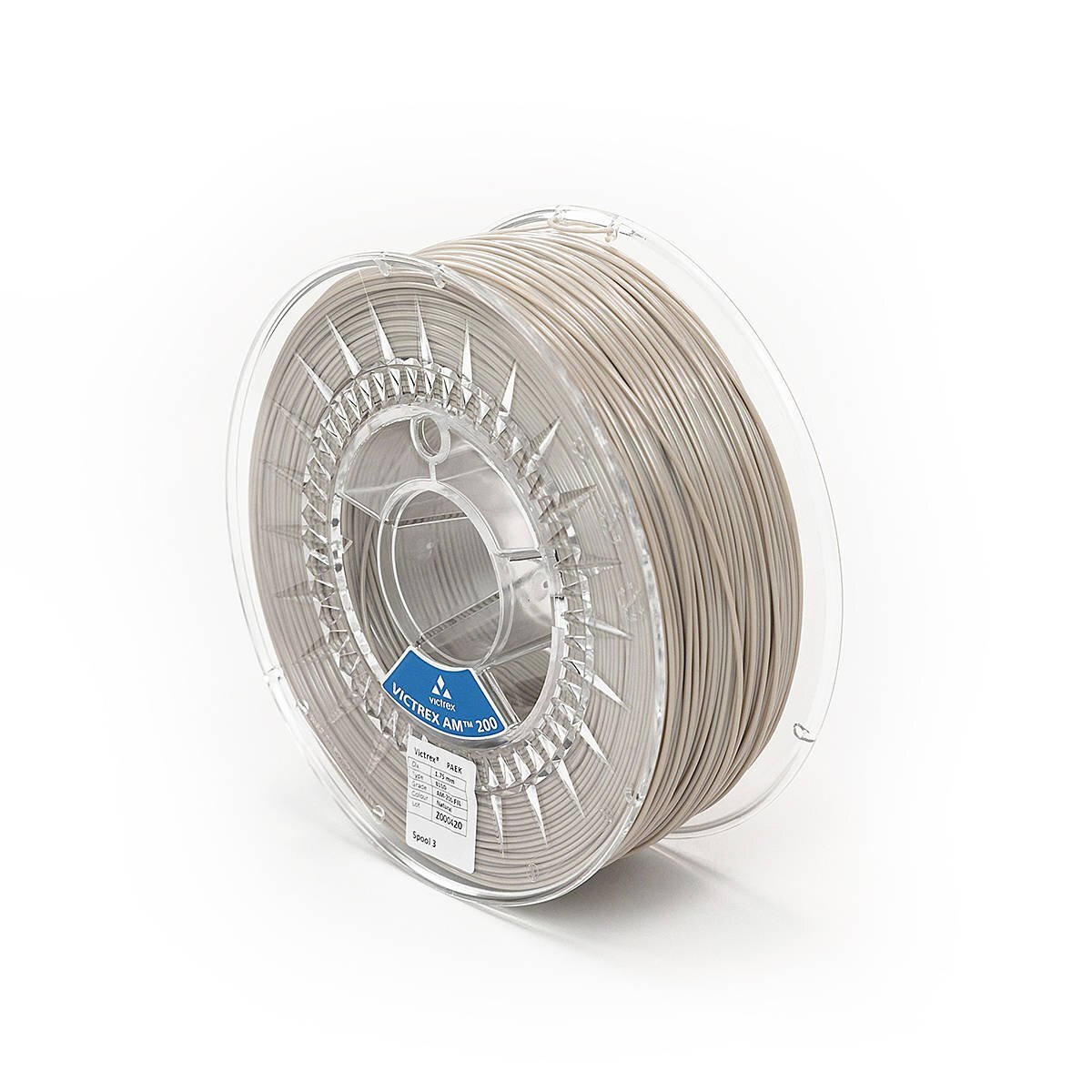

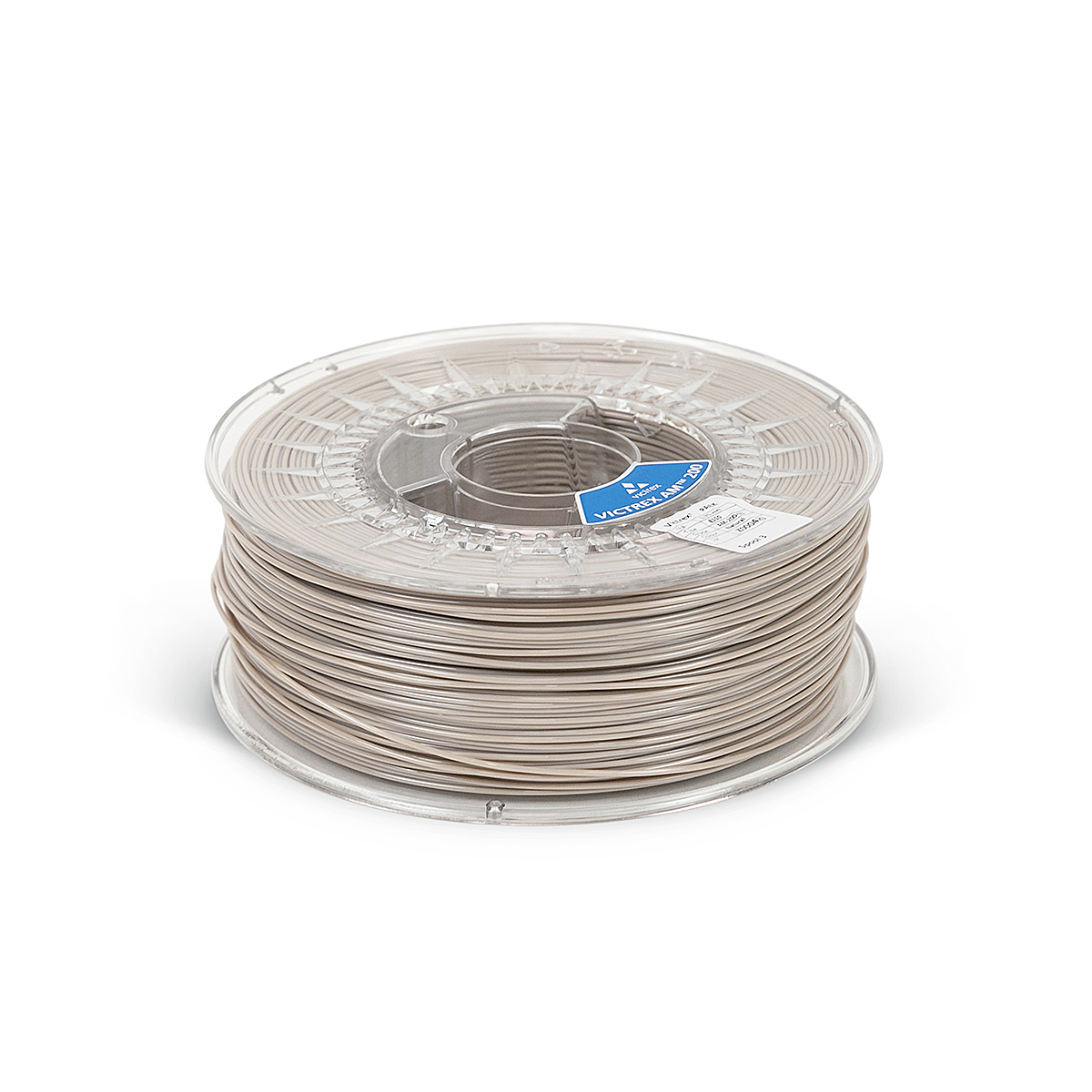

VICTREX AM™ 200 FIL

High performance thermoplastic material, PolyArylEtherKetone (PAEK), semi crystalline, filament for Additive Manufacture by filament fusion and other melt extrusion 3D printing processes. Colour natural/beige.

Additive manufacturing processing. Filament Fusion printed parts, to achieve improved printed part strength and printability compared to PEEK polymer on most machines. For use in higher temperature applications and chemically aggressive environments. Low outgassing, suitable for sterilisation. Not suitable for medical implant applications. Product supplied vacuum packed with desiccant and dry when produced. Drying before use is recommended.

Material Properties
Mechanical

Nominal Value

Unit

Test Method

Tensile Modulus

ISO 527-1

XY Orientation : 23°C 1

2300 to 2900

MPa

XY Orientation : 23°C 2

2900 to 3700

MPa

YZ Orientation : 23°C 1

2200 to 2600

MPa

YZ Orientation : 23°C 2

2100 to 2900

MPa

ZX Orientation : 23°C 1

2100 to 2300

MPa

ZX Orientation : 23°C 2

2600 to 2800

MPa

Tensile Stress

ISO 527-2

XY Orientation : Yield, 23°C 1

45.0 to 57.0

MPa

XY Orientation : Yield, 23°C 2

58.0 to 70.0

MPa

YZ Orientation : Yield, 23°C 1

56.0 to 58.0

MPa

YZ Orientation : Yield, 23°C 2

65.0 to 73.0

MPa

ZX Orientation : Yield, 23°C 1

34.0 to 44.0

MPa

ZX Orientation : Yield, 23°C 2

36.0 to 50.0

MPa

Tensile Strain

ISO 527-2

XY Orientation : Break, 23°C 1

15 to 33

%

XY Orientation : Break, 23°C 2

14 to 16

%

YZ Orientation : Break, 23°C 1

15 to 19

%

YZ Orientation : Break, 23°C 2

13 to 19

%

ZX Orientation : Break, 23°C 1

5.0 to 7.0

%

ZX Orientation : Break, 23°C 2

4.0 to 6.0

%

Thermal

Nominal Value

Unit

Test Method

Glass Transition Temperature

ISO 11357-2

Onset

151

°C

Midpoint

154

°C

Melting Temperature

303

°C

ISO 11357-3

Peak Crystallization Temperature

249

°C

ISO 11357-3
Fill Analysis

Nominal Value

Unit

Test Method

Melt Viscosity (400°C, 1000 sec^-1)

245

Pa·s

ISO 11443
Additional Information

Diameter (3 axis laster micrometer): 1.75 mm
Linear density (Victrex test method VSH-STM-01): 31,000 g/10000 m

Packaging:

  • Spool Dimensions: 200mm diameter; 70mm width; 55mm centre bore
  • Spool Material: Heat-resistant Polycarbonate
  • Nominal Weights: 1kg, 0.5 kg respectively
  • Nominal Lengths: 322m, 161m respectively
Typical Processing Information
Extrusion

Nominal Value

Unit

Drying Temperature

120

°C

Drying Time

5.0

hr

Suggested Max Moisture

< 0.020

%

Melt Temperature

380 to 400

°C

Extrusion Notes

Chamber/Build-Space Temperature:

  • Printing directly semi-crystalline: Above 150°C (see note below)
  • Printing amorphous: Below 150°C (see note below)

Bed Temperature:

  • 20-40°C above chamber temperature, keeping below 150°C for amorphous print.

Annealing conditions:

  • Slow heating rate (3°C/min ramp rate). 170-180°C, 2-4 hours. Optimization may be required.


Best results may be expected from elevated build-space temperatures and are machine specific. This datasheet represents properties that may be expected from build-space temperatures between 50-120°C on ISO 527-2 1A samples. Samples have been successfully produced on <120°C build-space temperatures, however higher performance may be expected from machines with >120°C build space temperatures. Results vary widely from machine to machine.
Annealing may be required to generate semi-crystalline parts, depending on the machine and process conditions used in printing. Semi-crystalline parts can be made in some machines by using chamber temperatures >150°C, however in other machines the best results may be achieved by printing parts with reduced crystallinity and subsequently annealing. Annealing temperatures between 170-180°C are recommended. Parts may deform if higher annealing temperatures are used. Depending on the print parameters, annealing conditions may require adjustment for best results.

Important notes:
i. Example values only. Not product specification.
ii. Printing condition details: ISO 527-2 type 1A specimens printed on a 3D Gence F340 printer. Layer height: 0.15mm. Nozzle diameter: 0.4 mm. Nozzle temperature 380°C. Chamber temperature: 60°C. Bed temperature: 100°C. Infill: 100%. Raster angle: ± 45°. Contour speed: 20 mm/s. Hatch speed: 30 mm/s. ZX samples built with breakway support structure – details available on request.
iii. Data are generated in accordance with prevailing national, international and internal standards, and should be used for material comparison. Actual property values are highly dependent on part geometry, equipment configuration, extrusion deposition strategy and processing conditions. Properties may also differ for along flow and across flow directions and from different printers technologies and manufacturers.

Detailed data available on our website www.victrex.com or upon request.

Notes
1Amorphous As Printed
2Semicrystalline Annealed at 170°C 2hrs

(3DG548)

  • Works with:INDUSTRY F420
  • Module:M500
  • Material:PAEK
  • Colour:Natural
  • Weight:1 kg
  • Diameter:1.75 mm
  • Mechanical properties
  • Tensile Strength:70 MPa
  • Young’s Modulus:2,5 – 3,3 GPa
  • Bending Strength:2,1 – 2,7 GPa
  • Bending module:2,2 GPa
  • Hardness:-
  • Elongation:15%
  • 3D Printing Conditions
  • Extrusion: 380 - 420°C
  • Bed Temperature: 140 - 160°C
  • Chamber temperature: 120 - 155°C​
SKU 3DG548
Barcode # 5908216294969
Brand Victrex
Shipping Weight 1.5000kg
Shipping Width 0.300m
Shipping Height 0.150m
Shipping Length 0.300m
Shipping Cubic 0.013500000m3
Unit Of Measure kg
